Most people assume a fire rated glass project fails because the glass itself is defective.
In reality, that is rarely the starting point.
After working with international contractors, façade companies and developers across different construction projects, we have found that many problems appear long before the first glass panel reaches the building site.
A drawing is approved.
A quotation is accepted.
Production begins.
The container is shipped.
Everything seems to be moving according to schedule.
Then installation suddenly stops.
Sometimes the glass thickness no longer matches the framing system.
Sometimes the opening direction changes after production.
In other cases, the required fire rating does not match the latest building approval.
The glass may be manufactured exactly as ordered—but the project still cannot move forward.
These situations are not manufacturing defects.
They are planning mistakes.
Unlike standard architectural glass, fire rated glazing is part of a tested building system.
Every detail—from glass construction and framing to installation conditions—can influence the final project outcome.
This article is not intended to explain what fire rated glass is.
Instead, it shares several observations from international project experience that can help architects, contractors and purchasing teams reduce avoidable risks before production begins.
When a project encounters difficulties during installation, the first reaction is often to question the glass itself.
Was the glass manufactured incorrectly?
Was the fire rating insufficient?
Did the supplier make a mistake?
In many international projects, however, the answer is no.
The glass may fully comply with the approved drawings, yet the project still experiences delays because the original project requirements were never clearly defined.
Fire rated glass is different from many standard construction materials.
It is not a product that can simply be selected from a catalogue based on dimensions and thickness.
Instead, it is part of an integrated fire rated glazing system where every technical decision influences the next.
For this reason, experienced project teams usually spend more time discussing the application before confirming the glass specification.
The earlier these discussions take place, the lower the risk of redesign, production changes or installation conflicts later in the project.
Although two projects may both specify "fire rated glass", their technical objectives can be completely different.
For example:
A hospital may focus on maintaining safe evacuation routes.
An airport terminal may require transparent fire compartmentation across large open spaces.
A hotel may need to balance fire safety with acoustic comfort and energy efficiency.
An office tower may prioritise curtain wall performance while meeting local fire regulations.
At first glance, all of these projects appear to require the same material.
In practice, they require different glazing solutions.
This is why experienced manufacturers rarely begin by recommending a glass model.
Instead, they begin by asking questions.
Before preparing a quotation, experienced project teams usually try to understand the building rather than simply calculate the glass area.
Typical discussions include:
Where will the glass be installed?
Which fire rating is required by the local code?
Is the glazing system part of a curtain wall, a door, a partition or a window?
Does the project also require thermal insulation or solar control?
Has the framing system already been confirmed?
Are there size limitations based on testing or transportation?
These questions are not intended to make the quotation process more complicated.
They are intended to reduce uncertainty before manufacturing begins.
In many cases, identifying one overlooked detail at this stage can prevent weeks of delay later.
One of the biggest misunderstandings in international procurement is assuming that fire rated glass can be replaced in the same way as ordinary tempered or laminated glass.
Standard architectural glass is often selected according to its physical properties.
Fire rated glazing, however, is evaluated as part of a complete tested assembly.
This means that the glass, framing system, sealing materials and installation method are designed to work together.
Changing only one component may affect the overall system.
For project teams, this distinction is important because the objective is not simply to purchase fire rated glass.
The objective is to ensure that the complete glazing system performs as expected after installation.
One of the most challenging situations in international construction projects is discovering that every drawing appears to be correct, yet the glazing system still cannot be installed as planned.
From a manufacturing perspective, this can be frustrating.
The glass dimensions match the approved shop drawings.
The edge finishing is completed as specified.
The fire rated construction follows the confirmed production details.
Quality inspection is passed.
Shipping is completed.

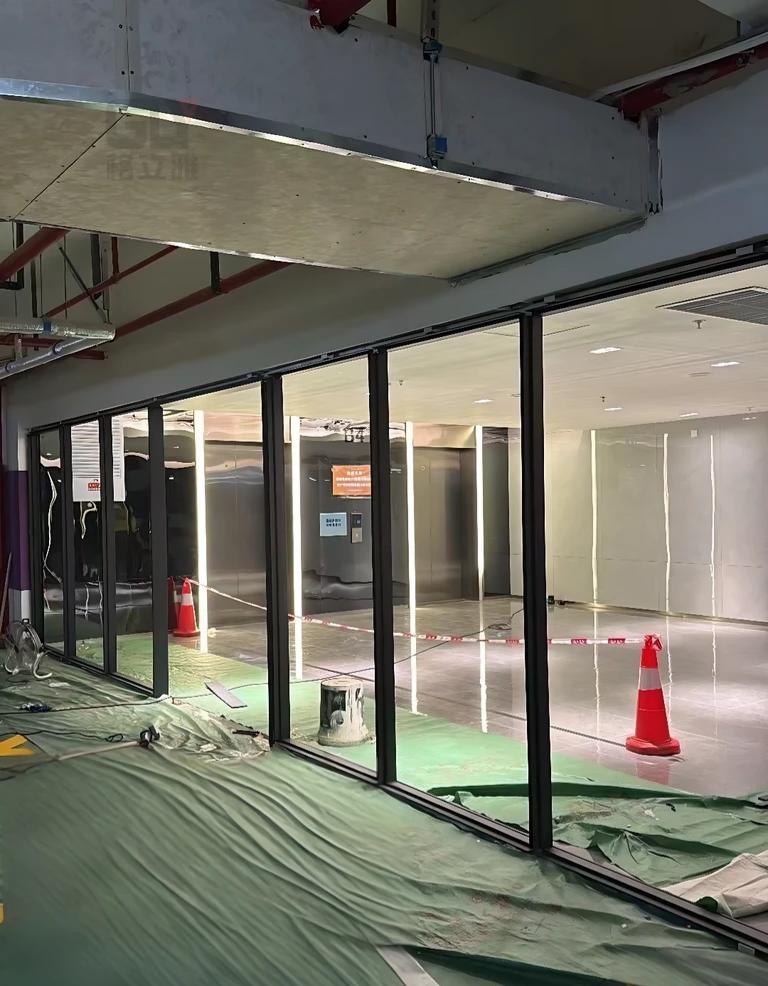

Yet once the glass arrives on site, installation stops.
This situation is more common than many people expect—not because someone made an obvious mistake, but because different parts of the project were developed at different times.
Architectural drawings may have been updated.
The framing supplier may have changed profiles.
Building regulations may have been revised during the approval process.
The glass itself has not failed.
The coordination between different project stages has.
For this reason, experienced manufacturers pay close attention not only to the glass drawing, but also to the project context behind it.
A production drawing tells the factory what to manufacture.
It does not always explain how the glass will function after installation.
Before production begins, manufacturers often need to understand information that may not appear directly on the drawing, such as:
Which framing system has been selected?
Has the frame already been tested with this fire rated glazing system?
Will the glass be installed vertically or horizontally?
Is the opening fixed, sliding or hinged?
Will the glazing be exposed to direct sunlight for long periods?
Does the project combine fire protection with thermal insulation requirements?
These details influence how the glass system performs after installation, even though they may not change the appearance of the drawing itself.
The earlier these questions are clarified, the easier it becomes to avoid unnecessary redesign or replacement.
Large construction projects rarely remain unchanged from beginning to end.
During procurement, it is common for different contractors to optimise costs, adjust suppliers or update construction schedules.
Most of these changes are completely reasonable.
However, even a small modification can influence the glazing system if the technical information is not reviewed as a whole.
For example, changing the framing profile, revising the opening direction or adjusting the glass dimensions after production planning has started may require additional technical verification.
These situations do not necessarily indicate poor project management.
They simply demonstrate why communication between designers, contractors and manufacturers is so important throughout the project lifecycle.
Across different international projects, one pattern appears repeatedly.
Projects that experience fewer installation issues usually spend more time reviewing technical details before manufacturing begins.
Rather than focusing only on pricing and delivery schedules, experienced project teams often verify:
Application drawings
Fire performance requirements
Framing compatibility
Glass construction
Installation conditions
Project specifications
This review process does not eliminate every possible risk.
However, it significantly reduces the chance of discovering major issues after the glass has already been manufactured.
In complex projects, prevention is almost always more efficient than correction.
During international procurement, comparing quotations is a normal part of every project.
Glass thickness, fire rating and unit price are often the first figures discussed.
However, experienced contractors gradually discover that the cost of a fire rated glass project is not determined by the quotation alone.
The real cost is measured after production begins.
If the supplied glazing cannot be installed without modification, the project may face consequences that are far more expensive than the original material cost.
Replacing a glass panel is only one part of the expense.
More often, delays affect several parties at the same time.
Installation teams may need to reschedule.
Scaffolding or lifting equipment may remain on site longer than planned.
Interior finishing may be postponed.
Building inspections may need to be rearranged.
For large commercial developments, these indirect costs can quickly exceed the price difference between competing glass quotations.
For this reason, experienced project managers rarely evaluate fire rated glass based only on the lowest unit price.
Instead, they consider whether the proposed solution reduces project uncertainty from the beginning.
In complex projects, manufacturing quality is only one part of a successful delivery.
The supplier also plays an important role during the technical communication process.
Questions raised before production often prevent much larger problems later.
For example:
Is the proposed glass structure suitable for the intended application?
Does the framing system match the selected glazing configuration?
Are transportation dimensions practical for the project location?
Have installation tolerances been considered?
Are all performance requirements reflected in the final specification?
These discussions may appear to slow down the quotation process.
In reality, they often accelerate the construction schedule by reducing avoidable revisions later.
The objective is not simply to manufacture glass.
It is to help the project progress smoothly from design to installation.
For many overseas projects, selecting a fire rated glass manufacturer is not simply a purchasing decision.
It is also a decision about technical support.
Developers and contractors are often managing multiple suppliers at the same time.
Structural steel.
Curtain wall systems.
Doors.
Windows.
Mechanical equipment.
Interior finishes.
Each supplier contributes to the final building.
When technical information is incomplete, even a small misunderstanding between suppliers may affect the construction schedule.
This is why communication before manufacturing has become increasingly valuable.
A manufacturer who understands project coordination can often identify potential issues before they become site problems.
That support may never appear on an invoice, but it often becomes one of the most valuable contributions during the project.

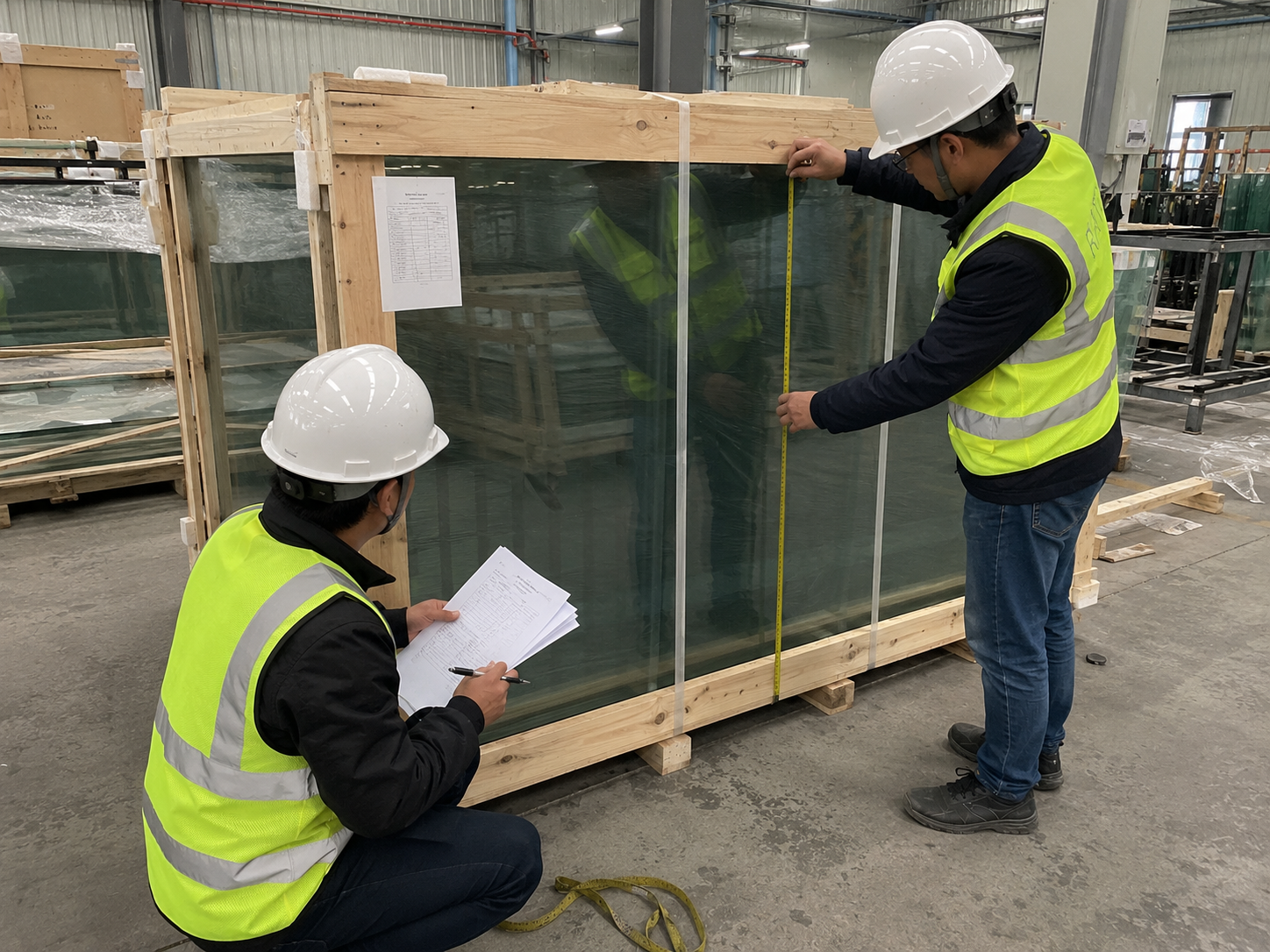

Before confirming a fire rated glass order, project teams may find it helpful to review the following points:
Is the glass used in a curtain wall, window, door or partition?
Has the installation location been clearly identified?
Which fire resistance classification is required?
Does the specification comply with local building regulations?
Has the glass structure been confirmed?
Is laminated, insulated or Low-E performance also required?
Has the framing system been selected?
Is it compatible with the proposed glazing solution?
Are transportation dimensions acceptable?
Have installation tolerances been reviewed?
Will lifting equipment have access?
Have the latest drawings been approved?
Are all revisions reflected in the production documents?
As building systems become more complex, the role of a glass manufacturer is also changing.
In many international projects, manufacturing begins long before installation starts on site.
By that stage, changes become increasingly expensive.
For this reason, many architects and contractors now involve glass manufacturers earlier in the project rather than waiting until production drawings are completed.
Early technical discussions help confirm whether the proposed glazing solution is practical for manufacturing, transportation and installation.
Questions about framing compatibility, glass construction, fire performance and energy requirements are often easier to resolve before production starts than after the glass has already been fabricated.
From our experience working with international construction projects, successful deliveries usually share one characteristic:
Different members of the project team communicate early, review technical details together and make decisions based on the complete glazing system instead of a single product specification.
This collaborative approach does not remove every challenge from a project.
However, it significantly reduces avoidable risks before manufacturing begins.
Many people believe that choosing the right fire rated glass is the most important decision in a project.
In reality, successful projects rarely depend on one product alone.
They depend on hundreds of technical decisions made before production even begins.
Glass specifications.
Fire performance.
Framing systems.
Installation methods.
Transportation.
Building regulations.
Each detail contributes to the final outcome.
For architects, contractors and developers, reducing project risk is not about choosing the most complicated glazing system.
It is about ensuring that every part of the system works together before manufacturing starts.
Fire rated glass is more than a construction material.
It is one component within a carefully coordinated building system.
The earlier this coordination begins, the more predictable the project becomes.
Most delays are not caused by manufacturing defects but by changes in project requirements, framing systems, drawings or installation conditions after production has already started.
In many cases, changing dimensions, glass construction or fire performance after production has started requires a complete technical review and may involve remanufacturing.
Fire rated glass is tested as part of a complete glazing system. Frame design plays an important role in the final performance of the installed assembly.
Early technical discussions often help identify potential manufacturing or installation issues before they become costly project delays.
No. Glass construction should always be selected according to the building application, local regulations and overall project requirements.
Providing project location, application, required fire rating, approximate dimensions, framing system and performance requirements helps manufacturers recommend a more suitable glazing solution.
No. Modern fire rated glazing is widely used in curtain walls, windows, partitions, stairwells, public buildings and commercial developments.
