In modern architectural projects, glass is expected to do far more than provide transparency.
For commercial buildings, high-rise facades and energy-efficient developments, glazing systems are required to balance multiple performance requirements:
Fire protection
Thermal insulation
Solar heat control
Natural daylight
Energy efficiency
Architectural appearance
This has led to the increasing use of advanced glazing structures such as triple laminated insulated fire rated glass with Low-E coating.
However, during the design stage of a project, one question often creates discussion among architects, facade consultants and glass manufacturers:
Where should the Low-E coating be positioned inside a triple insulated glass unit?
Some engineers prefer one coating location, while others choose another configuration depending on project conditions.
The reason is simple:
There is no universal Low-E position suitable for every building.
The correct solution depends on the complete glazing system, including climate conditions, building orientation, energy targets, fire requirements and facade design.
This article shares a practical approach from a glass manufacturing perspective, explaining how professionals evaluate Low-E coating positions when designing high-performance fire rated glazing systems.

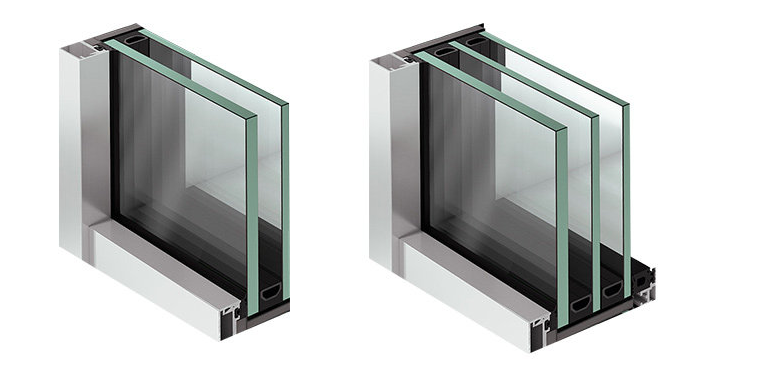

Before discussing coating position, it is necessary to understand how glass surfaces are numbered.
In an insulated glass unit, surfaces are counted from the exterior side toward the interior side.
For a typical triple glazing structure:
The Low-E coating is usually applied to an internal glass surface rather than an exposed external surface.
This protects the coating from:
Weather exposure
Mechanical damage
Cleaning impact
Long-term durability issues
In triple glazing systems, engineers often evaluate internal surfaces because they influence how solar energy and infrared radiation interact with the glass structure.
A common misunderstanding is that Low-E performance depends only on the coating itself.
In reality, the final performance is influenced by the interaction between:
Glass thickness
Spacer design
Gas filling
Laminated structure
Coating position
Climate environment
The same Low-E coating can perform differently when placed in different positions within a glazing system.
For this reason, professional glass selection starts from the building requirements rather than from a single glass component.
In colder regions, buildings usually require glazing systems that reduce indoor heat loss.
The Low-E coating is designed to reflect infrared radiation back toward the building interior, helping improve thermal insulation performance.
Projects in cold climates often prioritize:
Lower U-value
Heat retention
Reduced heating demand
In warmer regions, reducing solar heat gain becomes a higher priority.
Large glass facades can introduce significant solar radiation into buildings, increasing cooling requirements.
Therefore, engineers evaluate coating position together with:
Solar heat gain coefficient
Visible light transmission
Facade orientation
A glass facade facing different directions may experience completely different solar conditions throughout the day.
For example:
South-facing facades may receive stronger solar exposure depending on geographic location.
East-facing glass experiences intense morning sunlight.
West-facing glass often receives stronger afternoon solar heat.
Because of these differences, architects and facade engineers cannot select a Low-E configuration based only on glass type.
The coating position should be evaluated together with:
Building orientation
Window-to-wall ratio
Shading design
Local climate
HVAC requirements
In large commercial projects, especially curtain wall applications, the Low-E position becomes part of the overall facade performance strategy.
One of the most important differences between standard energy-efficient glazing and fire rated glazing is that fire rated glass must meet safety performance requirements under extreme conditions.
A normal Low-E insulated glass unit mainly focuses on:
Thermal insulation
Solar control
Energy savings
However, fire rated glass must additionally consider:
Integrity during fire exposure
Heat resistance
Interlayer stability
Glass composition
Tested assembly configuration
This means that a Low-E coating position cannot be selected independently.
A modification that appears small, such as changing the coating location, may influence:
Thermal stress distribution
Glass temperature changes
Overall fire performance
For fire resistant glazing applications, the complete tested glass structure is more important than any single component.

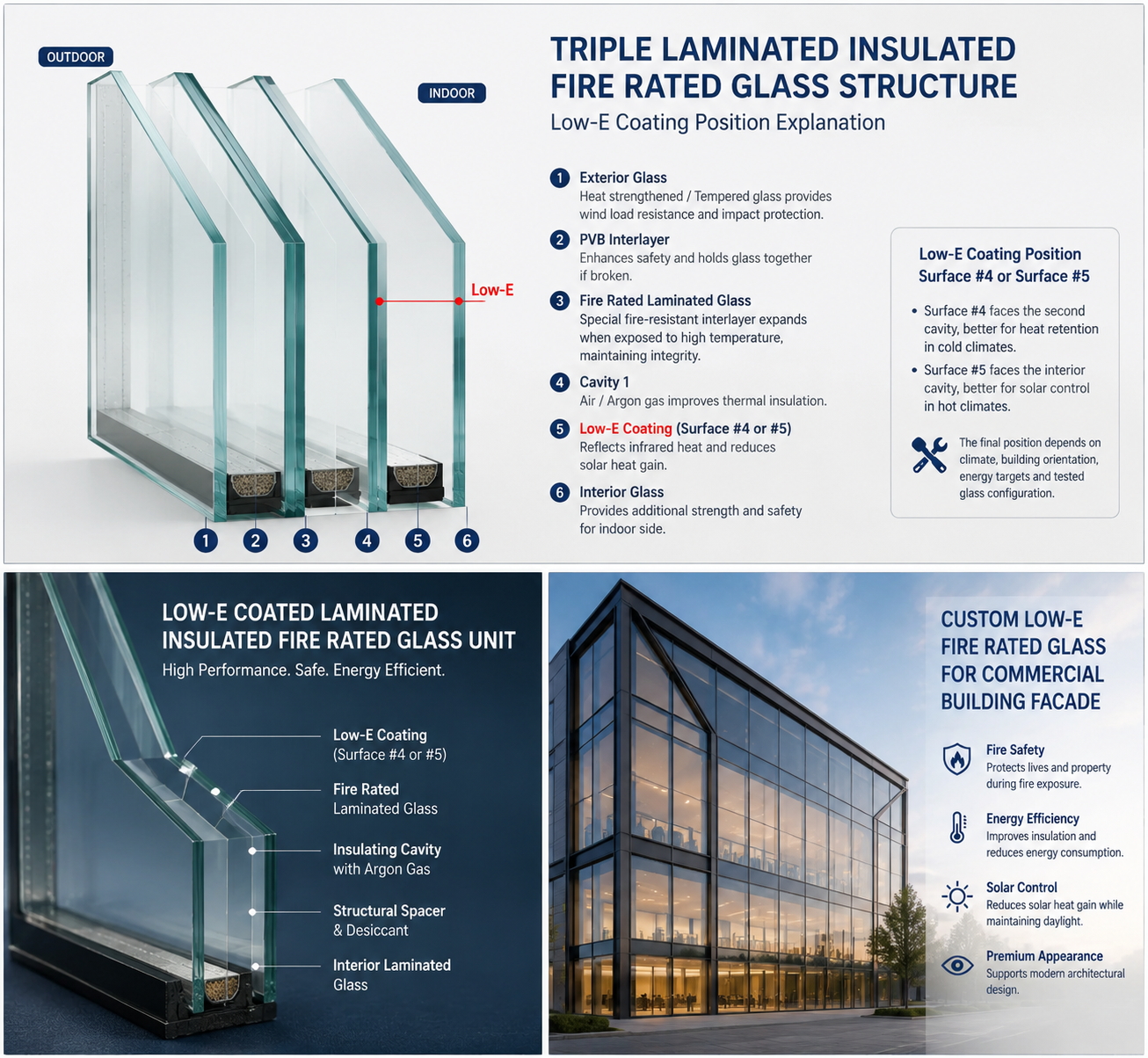

A high-performance fire rated glazing system is usually composed of multiple functional layers.
A typical triple laminated insulated fire rated glass structure may include:
Provides:
Weather resistance
Impact protection
Structural support
Provides:
Fire protection performance
Heat resistance
Integrity during fire exposure
Provides:
Thermal insulation
Sound reduction
Energy efficiency improvement
Provides:
Infrared reflection
Solar heat control
Improved energy performance
Provides:
Additional protection
Interior surface stability
The performance of the final glazing system depends on how these layers work together.
Low-E coating is not an independent product added to fire rated glass.
It is part of a carefully engineered glazing solution.
For overseas construction projects, glass selection is rarely a simple product purchase.
Architects, contractors and developers often need solutions based on:
Project location
Building codes
Fire rating requirements
Energy targets
Glass dimensions
Installation methods
A professional glass manufacturer does not only provide glass panels.
The manufacturer needs to understand how each layer contributes to the final performance.
For example, a project requiring:
Fire resistance
Solar control
High transparency
Thermal insulation
may require a completely different configuration from a standard Low-E insulated glass unit.
This is why customized glass engineering support becomes increasingly important in modern architectural projects.
When developing a Low-E fire rated glass solution, experienced manufacturers usually evaluate several key factors.
Is the glass used for:
Curtain walls?
Fire rated windows?
Partitions?
Facade systems?
Commercial buildings?
Different projects may require different fire ratings:
Integrity protection
Radiation control
Insulation performance
The manufacturer evaluates:
Glass thickness
Interlayer selection
Spacer system
Cavity design
Coating compatibility
The goal is not to maximize one single parameter.
The goal is to achieve balance between:
Safety
Energy efficiency
Appearance
Long-term reliability
Fire rated glass projects require a different level of consideration compared with standard architectural glazing.
In ordinary insulated glass, engineers mainly focus on thermal and solar performance.
However, in fire rated glazing systems, the glass must maintain safety performance during fire exposure.
A complete fire rated glass solution involves the interaction between:
Glass composition
Fire resistant interlayer
Spacer system
Insulating cavity
Coating position
Supporting frame system
Changing one element may influence the performance of the complete assembly.
For this reason, Low-E coating placement should always be evaluated together with the fire rated glass structure.
A reliable manufacturer does not simply move the coating location based on energy requirements.
Instead, the complete system must be reviewed to ensure that energy efficiency and fire protection requirements work together.
With increasing requirements for energy-efficient and safe buildings, Low-E fire rated glass systems are being considered for various commercial applications.
Typical applications include:
High-rise projects often require advanced facade systems that combine:
Fire safety
Thermal insulation
Solar control
Modern appearance
Large glass facades need to control solar heat gain while maintaining natural daylight.
Low-E fire rated glazing can support these requirements when properly designed.
Hotels often require:
Comfortable indoor temperature
Premium visual appearance
Fire compartmentation
Advanced glazing systems help achieve these combined objectives.
Large public buildings require strict safety standards while maintaining open architectural spaces.
Fire rated insulated glazing provides a solution where transparency and safety must coexist.
Every architectural project has different requirements.
A successful glass solution begins with understanding the project background rather than recommending a standard product immediately.
For customized Low-E fire rated glass projects, technical evaluation usually includes:
Understanding local climate and environmental conditions.
Identifying whether the glass is used for:
Curtain walls
Fire windows
Partitions
Facade systems
Confirming:
Fire rating level
Thermal targets
Solar control requirements
Visual expectations
Evaluating:
Glass thickness
Lamination structure
Insulating cavity
Low-E coating compatibility
Through this project-based approach, RATO helps international customers develop glazing solutions suitable for real construction requirements.
In advanced architectural glazing, there is rarely a universal answer that applies to every project.
The question of where to place Low-E coating inside triple laminated insulated fire rated glass should not be viewed as a simple choice between one surface or another.
The correct solution depends on the relationship between:
Energy efficiency
Fire protection
Building location
Facade design
Glass structure
For architects, developers and contractors, selecting the right glass partner means working with a manufacturer who understands both product performance and project requirements.
A high-performance fire rated glass system is not created by one coating layer alone.
It is created through careful engineering of every component.
No. The optimal coating position depends on climate conditions, energy requirements, glass structure and project application.
Yes. Low-E coating can be integrated into specially designed fire rated insulated glass systems when the complete structure is properly evaluated.
Important information includes:
Project location
Glass size
Fire rating requirement
Building application
Energy performance target
