Pdlc Smart Film also call privacy smart film, smart pdlc film, switchable pdlc film, switchable privacy smart pdlc film, smart glass pdlc film, smart glass film. It is state of the art laminated glass with a PDLC film interlayer between two sheets of 5mm safety tempered glass. The PDLC film is two layer PET-ITO conducting film + Middle inside (LCD) Liquid Crystal Membrane.

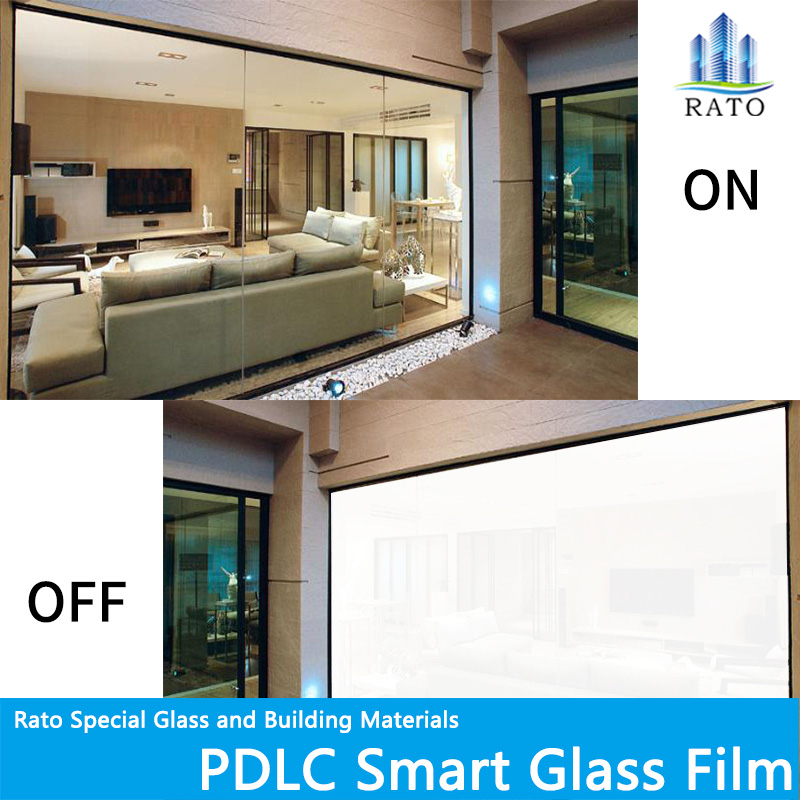

The smart film is an intelligent high function glass film, which has a special characteristic of changing between translucent and opaque by voltage control. When power off, coming visible light scatters through the PDLC, and the film turns translucent; When power on, coming visible light transmits the PDLC and the film turns clear.
Product details
Details Of Pdlc Smart Film:
Item | Mode | Value | |
Optical Parameters | Visible Light Transmission | Power On | ≥80% |
Power Off | ≥70% | ||
Haze | Power On | ≤4% | |
Power Off | ≥96% | ||
Visual Angle | Power On | >140º | |
Electrical Parameters | Operating Voltage | Power On | 40-60VAC |
Power Consumption | Power On | <5W/m2 | |
Response Time | On-->Off | <100ms | |
Off-->On | <10ms | ||
Physical Parameters | Color | / | White, blue, green, yellow, red, gray |
Thickness | / | 4mm+film+4mm, 5mm+film+5mm, 6mm+film+6mm, 8mm+film+8mm, 10mm+film+10mm | |
Max size of glass | / | 3000mm*1200mm/1800mm*3000mm | |
Max size of film | / | 1200mm*5000mm/1800mm*3000mm | |
Width | / | In Roll: 1/1.2/1.5m In Sheet: ≤1.5m | |
Length | / | In Roll: 30/60m, etc In Sheet: Any | |
On/Off Lifespan | / | >100, 000 times | |
Lifespan | Power On | >10 years | |
Environmental Parameters | Working Temperature | / | -20ºC-+70ºC |
Storage Temperature | / | -30ºC-+80ºC | |
Function | Privacy Protection and Space Partition | The smart glass switches between opaque and transparent, its priority function is privacy protection, meanwhile, allows architects and contractors to provide creative design concepts on demands. | |
Projection Screen | Ideal solution for a rear-projection screen with high contrast. | ||
Safety and Anti-explosion | Improve glass shatter resistance. | ||
Heat Insulation | Blocking 99% ultraviolet radiation, 98% infra-red rays, preventing fading of your floors and soft furnishings, protecting your skin. | ||
Sound Insulation | Blocking noise by 20% more than ordinary glass. | ||
Multiple Control Mode | To meet the needs of different occasions, various controls are available, such as remote control, wall switch, light sensor, voice control, mobile APP, etc. | ||
Product type | 1. Water proof smart glass 2. Bullet proof smart glass 3. Smart glass door / windows, smart glass partitions 4. Smart glass bathroom 5. Smart glass projection screen 6. Hollow sound insulation smart glass 7. Energy saving and environmental protection smart glass 8. Colorful smart glass/Digital printing dimmer Glass 9. Anti-skid smart glass 10. LED smart glass 11. UV protect smart glass | ||

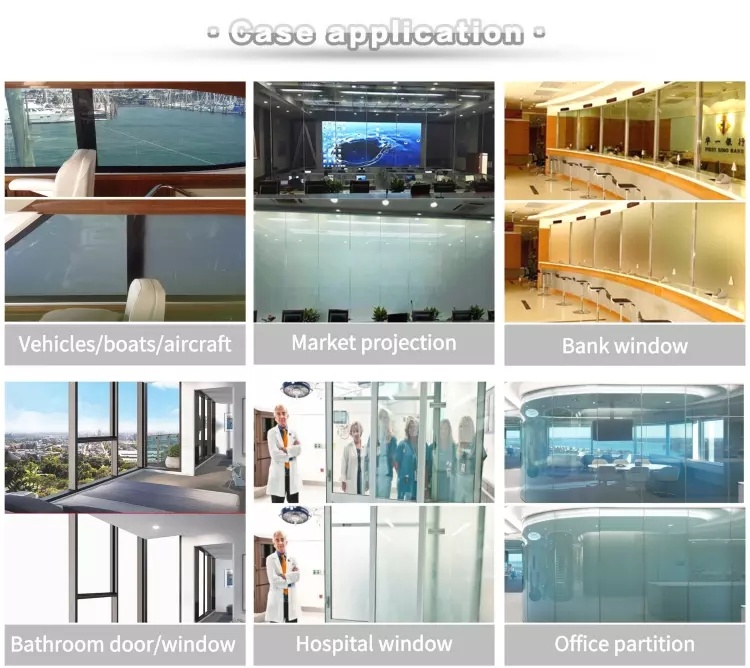

Application Place Of Pdlc Smart Film:
1. Operation department, slap-up office / meeting room / reception room, luxury villa / privacy room, doors / windows / partitions of senior entertainment.
2. Special ward / operation room of hospital, monitoring room / inquire room of police station, court, prison.
3. High-end bathroom / cars, lorries, luxury yacht.
4. Jewelry shop, museum, insurance counter, automatic equipment.
5. Large-scale projection screens
Pdlc Smart Film also call privacy smart film, smart pdlc film, switchable pdlc film, switchable privacy smart pdlc film, smart glass pdlc film, smart glass film. It is state of the art laminated glass with a PDLC film interlayer between two sheets of 5mm safety tempered glass. The PDLC film is two layer PET-ITO conducting film + Middle inside (LCD) Liquid Crystal Membrane.
The smart film is an intelligent high function glass film, which has a special characteristic of changing between translucent and opaque by voltage control. When power off, coming visible light scatters through the PDLC, and the film turns translucent; When power on, coming visible light transmits the PDLC and the film turns clear.
Product details
Details Of Pdlc Smart Film:
Item | Mode | Value | |
Optical Parameters | Visible Light Transmission | Power On | ≥80% |
Power Off | ≥70% | ||
Haze | Power On | ≤4% | |
Power Off | ≥96% | ||
Visual Angle | Power On | >140º | |
Electrical Parameters | Operating Voltage | Power On | 40-60VAC |
Power Consumption | Power On | <5W/m2 | |
Response Time | On-->Off | <100ms | |
Off-->On | <10ms | ||
Physical Parameters | Color | / | White, blue, green, yellow, red, gray |
Thickness | / | 4mm+film+4mm, 5mm+film+5mm, 6mm+film+6mm, 8mm+film+8mm, 10mm+film+10mm | |
Max size of glass | / | 3000mm*1200mm/1800mm*3000mm | |
Max size of film | / | 1200mm*5000mm/1800mm*3000mm | |
Width | / | In Roll: 1/1.2/1.5m In Sheet: ≤1.5m | |
Length | / | In Roll: 30/60m, etc In Sheet: Any | |
On/Off Lifespan | / | >100, 000 times | |
Lifespan | Power On | >10 years | |
Environmental Parameters | Working Temperature | / | -20ºC-+70ºC |
Storage Temperature | / | -30ºC-+80ºC | |
Function | Privacy Protection and Space Partition | The smart glass switches between opaque and transparent, its priority function is privacy protection, meanwhile, allows architects and contractors to provide creative design concepts on demands. | |
Projection Screen | Ideal solution for a rear-projection screen with high contrast. | ||
Safety and Anti-explosion | Improve glass shatter resistance. | ||
Heat Insulation | Blocking 99% ultraviolet radiation, 98% infra-red rays, preventing fading of your floors and soft furnishings, protecting your skin. | ||
Sound Insulation | Blocking noise by 20% more than ordinary glass. | ||
Multiple Control Mode | To meet the needs of different occasions, various controls are available, such as remote control, wall switch, light sensor, voice control, mobile APP, etc. | ||
Product type | 1. Water proof smart glass 2. Bullet proof smart glass 3. Smart glass door / windows, smart glass partitions 4. Smart glass bathroom 5. Smart glass projection screen 6. Hollow sound insulation smart glass 7. Energy saving and environmental protection smart glass 8. Colorful smart glass/Digital printing dimmer Glass 9. Anti-skid smart glass 10. LED smart glass 11. UV protect smart glass | ||
Application Place Of Pdlc Smart Film:
1. Operation department, slap-up office / meeting room / reception room, luxury villa / privacy room, doors / windows / partitions of senior entertainment.
2. Special ward / operation room of hospital, monitoring room / inquire room of police station, court, prison.
3. High-end bathroom / cars, lorries, luxury yacht.
4. Jewelry shop, museum, insurance counter, automatic equipment.
5. Large-scale projection screens
