Product Description:
Heat insulated composite Fire Resistant Glass is filling in the middle of fire-resistant glass is highly transparent fireproof double glazing perfusion liquid gluing process.
Fill with fireproof glue between glass, the fireproof glue will show itself clarity colloidal and connect two or more pieces of glasses after solidification.
Principle
After the case of high temperature, the middle of the glass transparent jelly-like fire adhesive layer will quickly induration, forming an opaque fire insulation board. In the flame to prevent the spread of the same time, but also to prevent high temperature to the back surface conduction. This type of fire glass not only has a excellent thermal insulation performance, and outstanding sound effects.
Specification
| Description | Heat insulated composite Fire Resistant Glass |
| Thickness | 20mm-38mm |
| Max. size Min.size | 2400mm×5000mm 200mm×300mm |
| Quality Standard | Comply with China GB15763, Europe BS-EN1634 |
| Advantages | 1. Good thermal stability, can bear the temperature difference is common glass 8 times 2. Can withstand 200 ºC temperature difference of change. 3. Good sound insulation |
| Production Range | insulated glass, laminated glass |
| Application | Windows, Doors, Exhibition Hall, Shower Room |
| Color | Clear, Ultra clear; Euro bronze, golden bronze; Blue, ocean blue, dark blue, light blue; F green, light green, dark green; Euro Grey, dark Grey. |
| Packing | Wooden Crate With Protection Film |
Production flow
1)Glass boding:
Two layers of glass(special needs also can use three layers of glass) surrounded by special fireproof glue sealing with the one small hole left preparing to perfuse transparent fire proof liquid or solution into the cavity shaped by two layers of glass and the around sealant.
2)Preparation of the slurry:
The clear fire proof fluid adhesive mixed into a polymer compound, then placed a day with sodium, magnesium chloride solution and other chemical in water and mixed, and then were added gelling agent ,methylene bis-acrylamide and mixed, and initiators sufficiently stirred to prepare a slurry
3)Compositing to whole integrity exlent fire proof glass the above slurry was perfused in step 1 glues flat glass, natural cure 2-3 days till closed filling hole is finished.

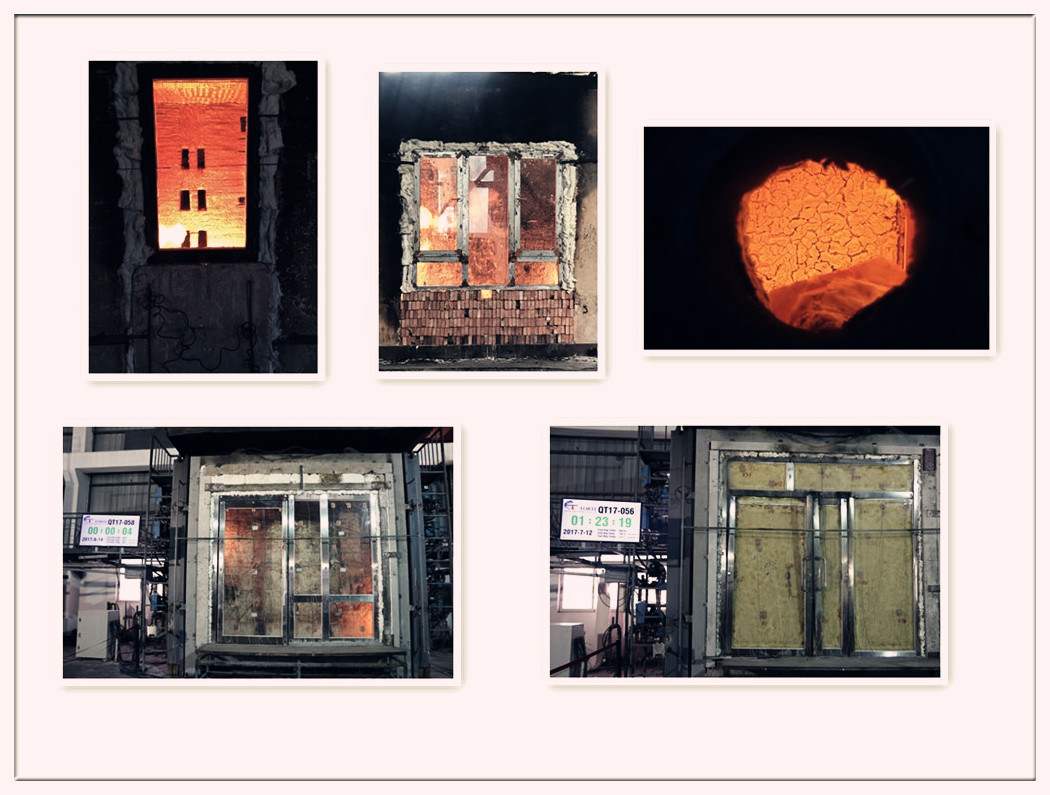

Test picture
Why choose us?
1. Delivery on time
2. 15 years experiences on glass manufacturing and exporting
3. Top quality glass with ISO9001, CE,GB, BS-EN certificate
4. Strong wooden cases with iron belt for consolidation
5. Full range of flat glass supply, offering personalized and dedicated service.

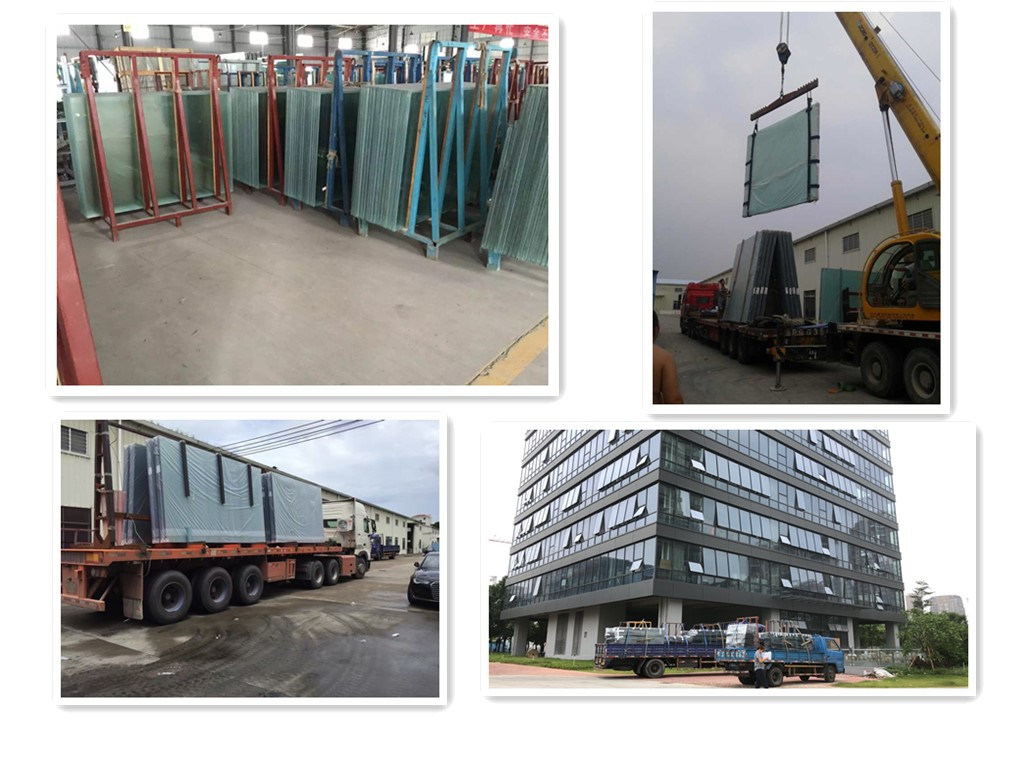

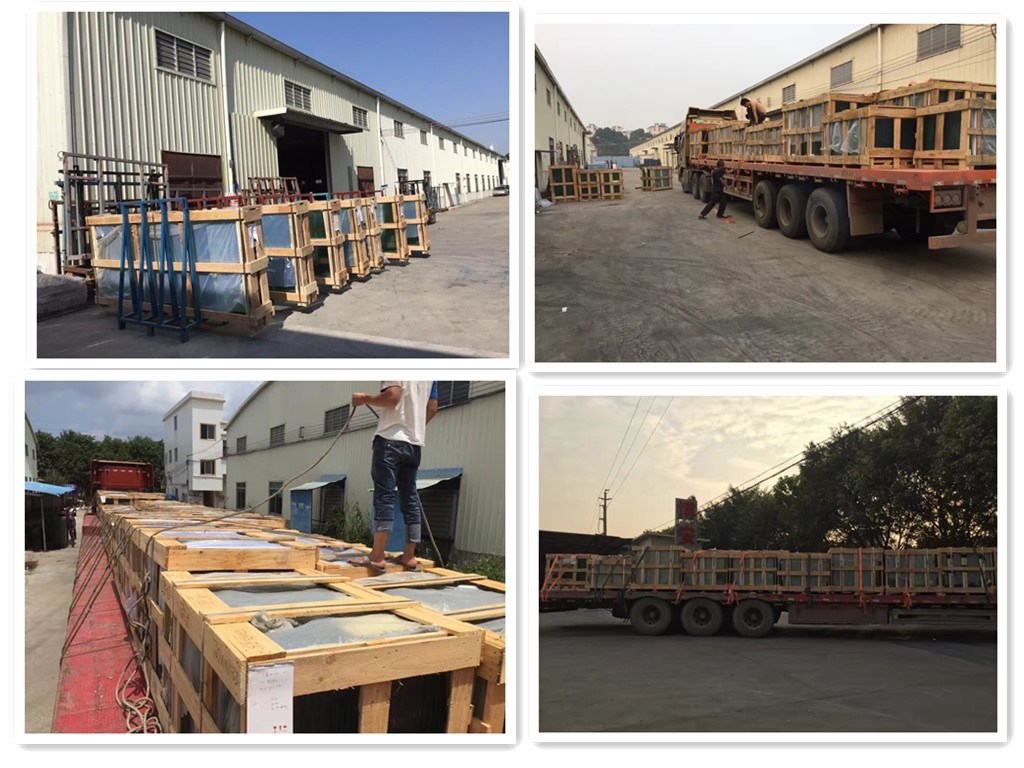

Packing & Loading
FAQ
1. What is your min order quantity?
Our MOQ is 100 square meters.
2. Are you factory?
Yes, we have factory in Heshan City, GUANGDONG Province.
3.How can I get samples to check your quality?
We can offer samples for free. but the sample freight need to pay by your side.
4. Can you do the production as customized?
Yes, we have a professional technique team, we could produce the glass depend on your requirements.
5. How about the package?
Strong wooden cases with iron belt for consolidation
6. *How can we get the quote?
Pls advise the size, thickness, the Period of fire resistance or any other requirements.
