Solid Glass Brick Wall Structural Installation for Reinforced Architectural Applications

Solid glass brick walls are no longer just decorative accents; they are structural elements. Their density, light transmission, and visual depth set them apart from standard partition systems. This density dictates a strict installation approach. Solid glass bricks generate massive dead loads compared to hollow blocks. You cannot rely on basic adhesive bonding or light framing. Tall openings and wide spans demand robust, reinforced support systems to ensure structural integrity and prevent failure.

Structural Characteristics of Solid Glass Brick Walls

Engineered installation starts with the material spec. A standard200 x100 x50mm solid glass brick weighs roughly 2.5kg. Multiply that across a full partition, and the dead load is massive.

In our field experience, under-reinforced walls rarely fail on dayone. They fail gradually. Uneven settlement, joint separation, andperimeter stress fractures are the hall marks of weak support.Structural framing is not an accessory-it is the core of the wall system.

Reinforced Installation Method Commonly Used for Solid Glass Brick Walls

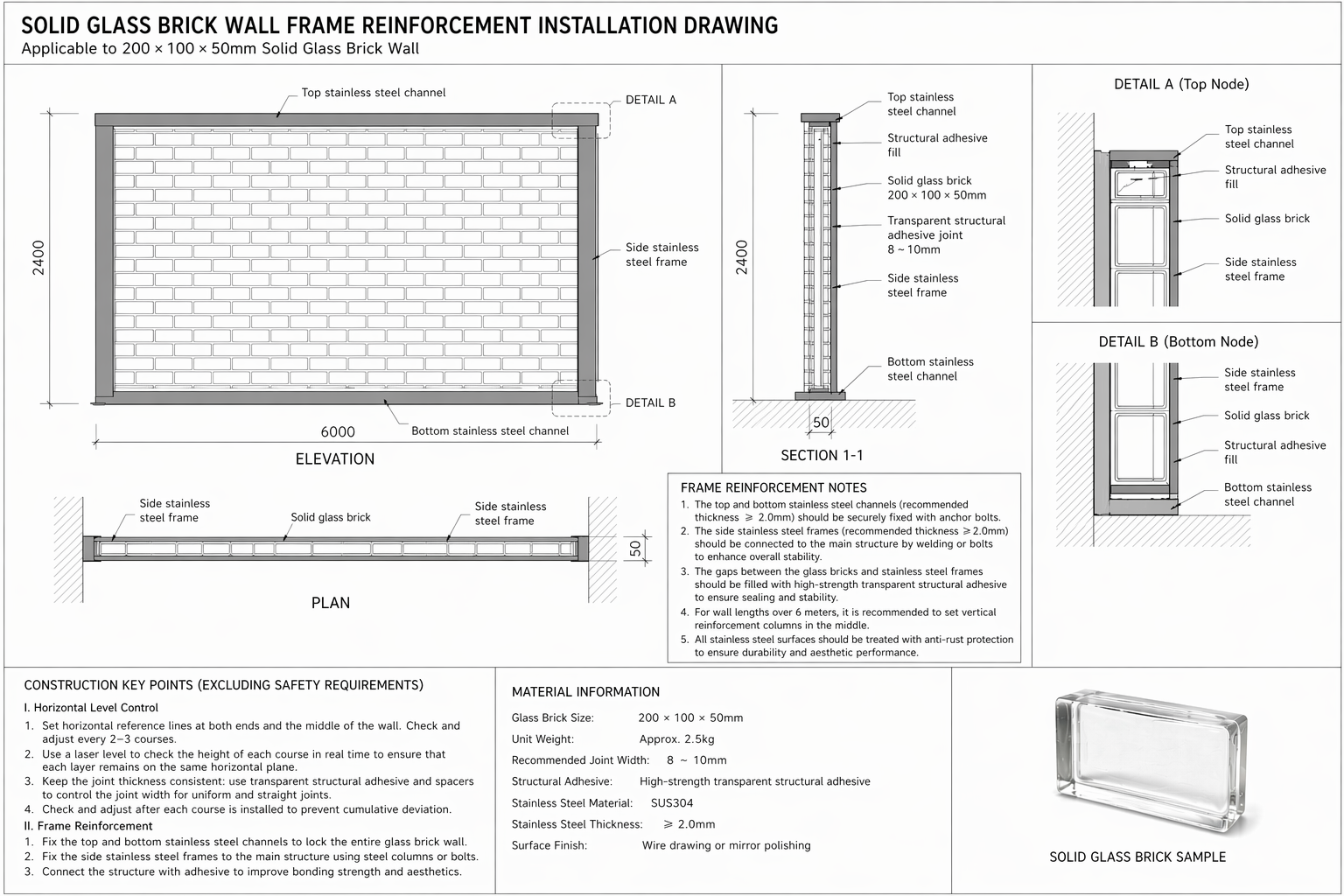

Commercial applications require locking the glass brick matrix within a stainless steel perimeter frame. This system stabilizes the assembly and transfers structural loads back to the primary building structure.

Top and Bottom Stainless Steel Channels

U-channels at the floor and ceiling handle vertical load distribution, They prevent compression displacement and lock the wall's geometry in place, Specify SUS304 stainless steel, minimum 2.0mm thickness.

Vertical Side Support Frames

Side framing restricts lateral movement and anchors the partition to the adiacent structural substrate, This connection is critical forfull-height walls or tight openings with zero movement tolerance.

Transparent Structural Adhesive Joint System

Use transparent structural adhesive instead of cement mortar. Aesthetically, it creates a monolithic glass effect. Structurally it absorbs micro-movements and thermal expansion while maintaining high bonding strength. Standard joint width is 8-10mm.

Intemmediate Reinforcement for Extended Wall Spans

For partitions exceeding 6 meters in length, integrate intermediate vertical reinforcements. This prevents lateral deflection acrosslong spans and ensures long-term dimensional stability. Consult your structural engineer for specific mullion sizing.

Design Considerations Prior to Installation

The best materials won't save poor site planning. Coordinatedimensions before breaking ground.

Opening Dimensions Should Follow Brick Module Layout

Design structural openings around exact brick modules and jointwidths, forcing dimensions on site leads to cut bricks, sloppy edge spacing,and compromised aesthetics. Plan the grid early.

Installation Tolerance Must Be Controlled

Throughout Construction Solid glass amplifies misalignment. A 2mm deviation becomesglaringly obvious due to light refraction. Contractors must checkplumb, level,and joint consistency course by course. You cannot fix alignment errors after the adhesive cures.

Environmental Conditions Should Influence Material Selection

Wet zones and coastal environments aggressively attack steel.Upgrade hardware specs accordingly, SUS304 or SUS316 stainless steel framing is mandatory for severe environments to guarantee long-termdurability.

Where Reinforced Solid Glass Brick Walls Are Most Commonly Applied

Specify solid glass bricks when a project demands both load-bearingpresence and high visual impact.

Hospitality Interiors

Lobby partitions, reception backdrops, and illuminated feature walls.

Bathroom and Spa Enclosures

High-humidity environments requiring privacy and maximum daylight transmission.

Retail and ommercial Feature Partitions

Heavy-duty spatial dividers and retail focal points.

Residential Interior Zoning

Structural,semi-open partitions dividing functional living spaces.

Solid Glass Brick Supply and Project Support from RAT0 Glass

RAT0 Glass engineers and manufactures hot-melt solid glass bricks for structural partitions. Beyond supplying the raw material, we provide project-specific technical support and installation detailing. Span, opening conditions, and site environments vary. Wereview your reinforcement schematics against actual site realities to ensure the system performs.

Closing Remarks

Treat solid glass brick walls as structural assemblies, not simple finishes, Rigid reinforcement, precise dimensional planning, andstrict material selection dictate the wall's lifespan. Execute these details correctly, and the system delivers absolute structural reliability alongside its signature aesthetic.
