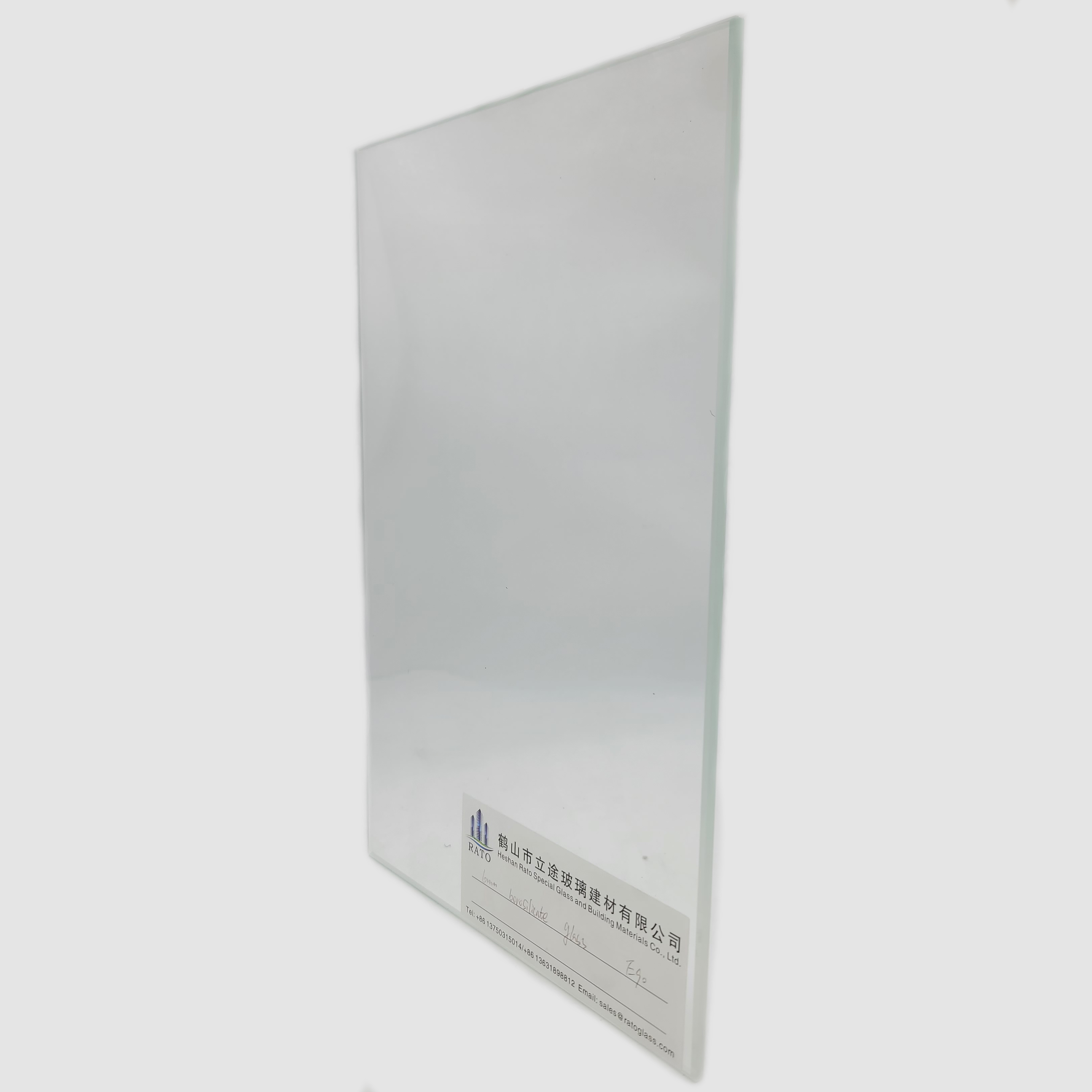

• Data Sheet
    Test Standard BS476 Part 22:1987
    Thickness 6mm(±0.3mm)
    Weight 15kg/㎡
    Light transmittance 88%
    Sound reduction index Rw 33dB
    U-value 5.7W/㎡K
    fire rated glassfire rated glassfire rated glass

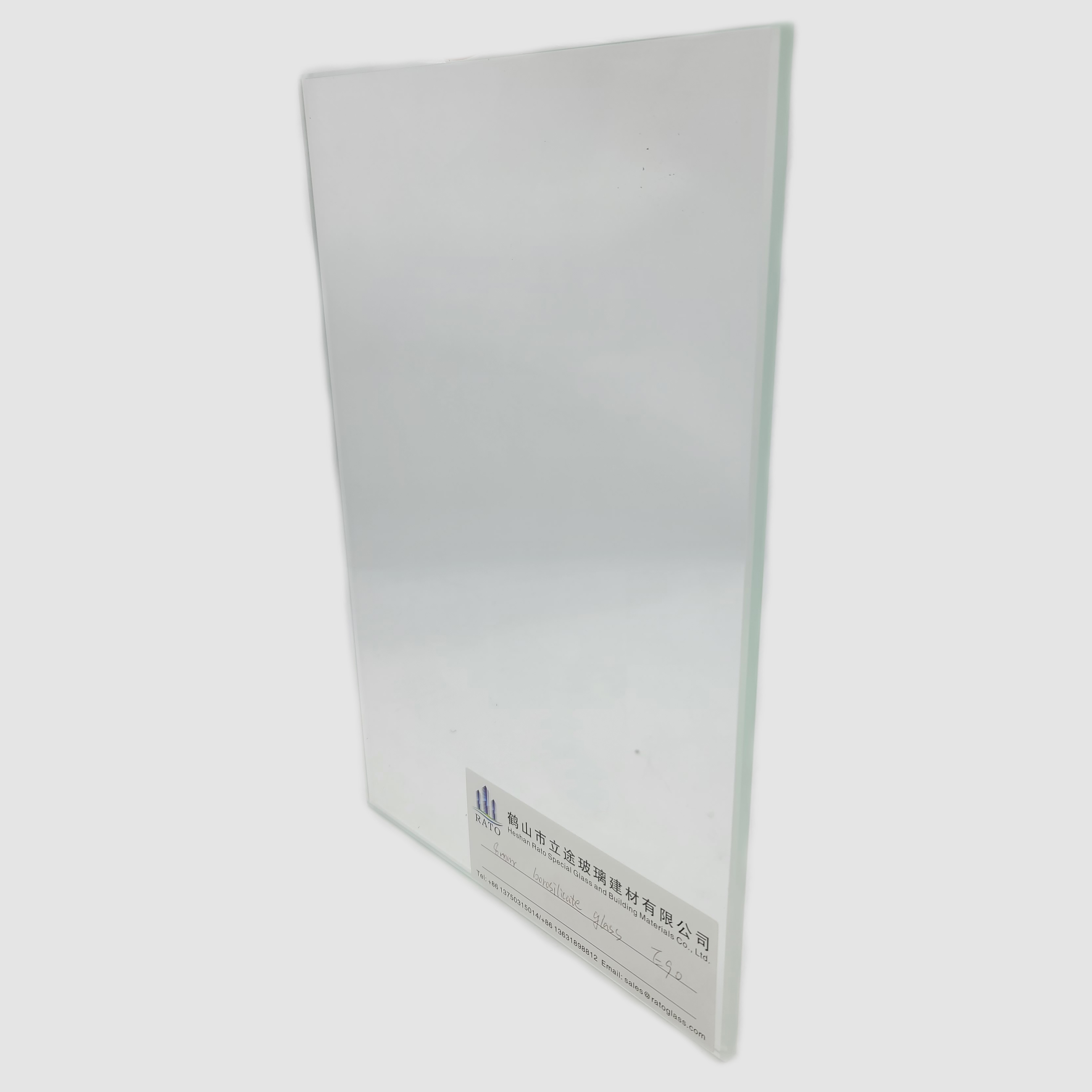

  • Data Sheet
    Test Standard BS476 Part 22:1987
    Thickness 8mm(±0.3mm)
    Weight 20kg/㎡
    Light transmittance 87%
    Sound reduction index Rw 34dB
    U-value 5.7W/㎡K
    fire rated glassfire rated glassfire rated glass
  • Data Sheet
    Test Standard BS476 Part 22:1987
    Thickness 10mm (±0.3mm)
    Weight 25kg/㎡
    Light transmittance 87%
    Sound reduction index Rw 35dB
    U-value 5.7W/㎡K
    fire rated glassfire rated glassfire rated glass

What is E-class (integrity) fire-rated glass?


E-class fire-rated glass keeps flames and hot gases on one side of the glass for a stated time. It does not limit how much heat comes through, so the unexposed side can still become very hot. For that reason E-class glass is usually specified where radiant heat is not the main concern, or where it is used together with other protection.

If your project needs the unexposed side to stay cool, see our EI fire-rated glass.

How do I choose fire-rated glass for my application?



The rating you need comes from the wall, door or screen the glass sits in, and from the building code of the project location. It is not set by glass thickness alone. Always confirm the requirement with the authority having jurisdiction.

Hospital partitions. Corridor and compartment partitions are usually specified by the fire resistance of the wall they sit in. Check whether insulation (EI) is required, not only integrity (E).

Escape corridors and stairwells. The glazing rating normally has to match the rating of the wall or door in that location, and the frame, hardware and seals have to be tested as part of the same assembly.

Curtain walls and floor edges. Curtain wall glass is generally not a fire barrier by itself. Fire-rated glass is typically needed at floor edges, compartment junctions and escape-related zones. Confirm the exact zones with the project fire strategy.

Typical references include EN 13501-2 and EN 1634-1 (Europe), BS 476 (UK), AS 1530.4 (Australia), and ASTM E119 with NFPA 80 and NFPA 101 (United States).

Which single-layer ratings do we supply?



The table lists the supplier designation and the test result reported for the tested assembly. The designation is the product name we use; the result is what the test report records.

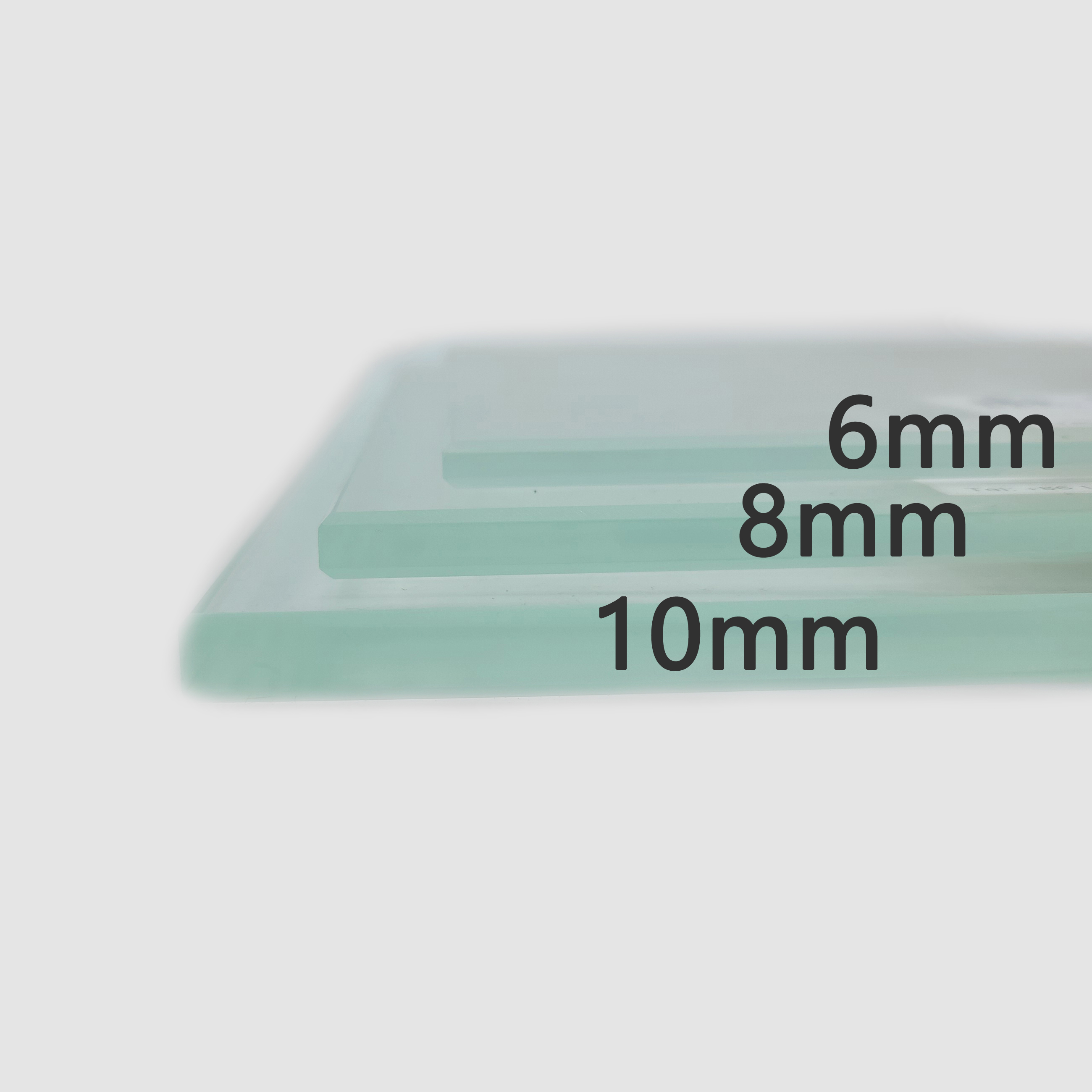

Thickness Supplier designation Reported test result Standard
6 mm E90 A tested 6 mm glazing system recorded 90 minutes of integrity. No insulation result reported. BS 476 Parts 20 and 22 (2008)
8 mm E60 A tested 8 mm window glazing system recorded 73 minutes of integrity. No insulation result reported. BS 476 Part 22 (report issued 2014)
10 mm E60 A tested 10 mm glazing specimen recorded at least 68 minutes of integrity. No insulation result reported. BS 476 Parts 20 and 22 (2005)

Full test reports are available on request. Results relate to the tested specimen or assembly only.

What should I check before ordering?

The complete assembly. Glass, frame, glazing seals and fixings must be tested and approved together. A rated glass in an untested frame does not give a rated wall.

The required rating and duration from your project specification and local code.

The glass size and orientation you need, because test results apply to the tested size and configuration.

What do I send with an inquiry?

Send the quantity, glass sizes, application, destination country and any assembly requirements, such as framing system or fixing method. We confirm the specification of every order in writing. Typical lead time is 20–30 days after deposit.

Results relate to the tested specimen/assembly only; the specification of each order is confirmed in writing.

Burning Inspection of Fire Rated Glazing Door

Our products are exported to countries and regions all over the world, earning the trust of our customers with exceptional quality and reliable performance. Each product undergoes rigorous quality testing to meet international standards, making it the best partner for your business growth. Choosing us means choosing quality, efficiency, and professional service, paving the way for a brighter future for your business!

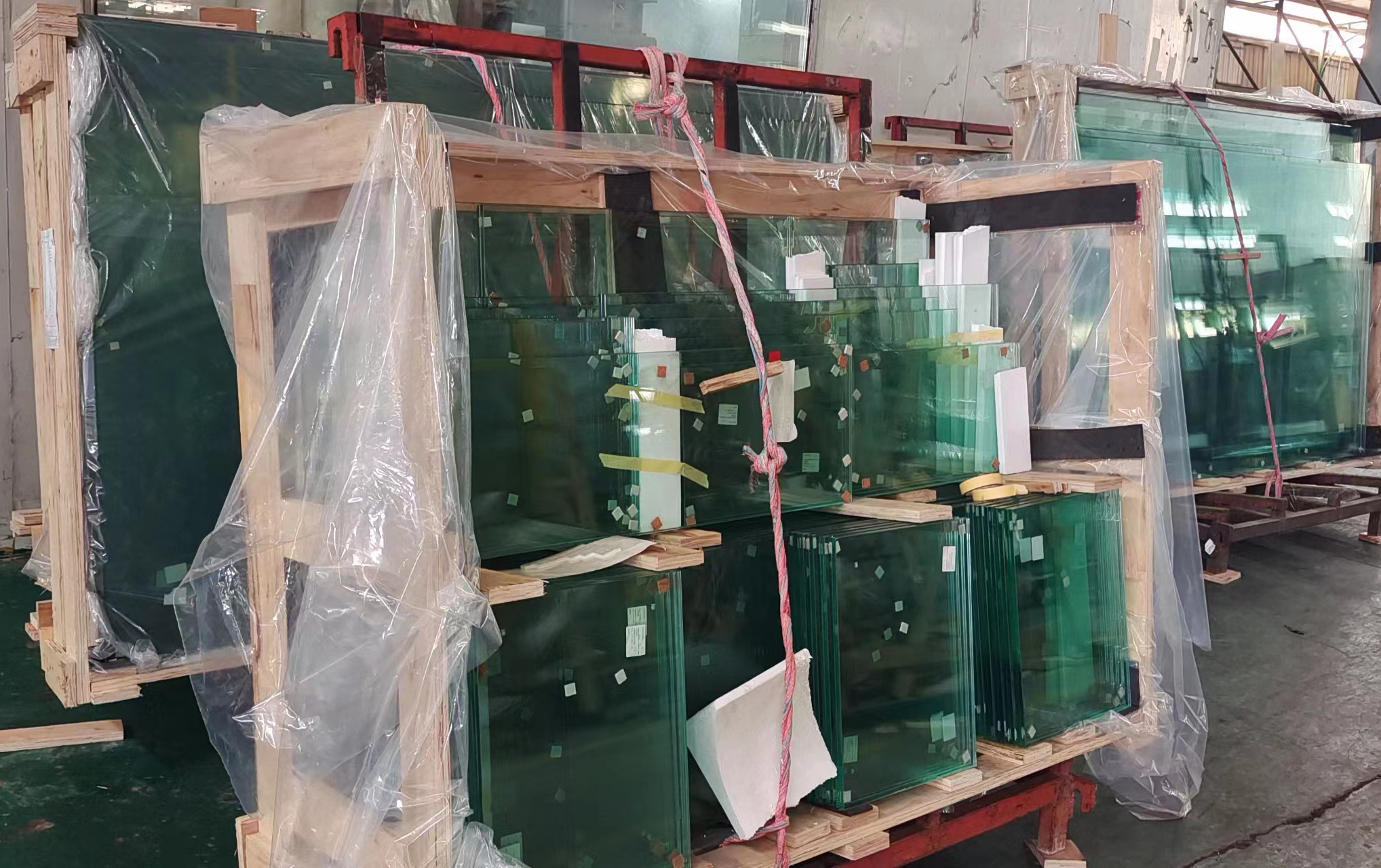

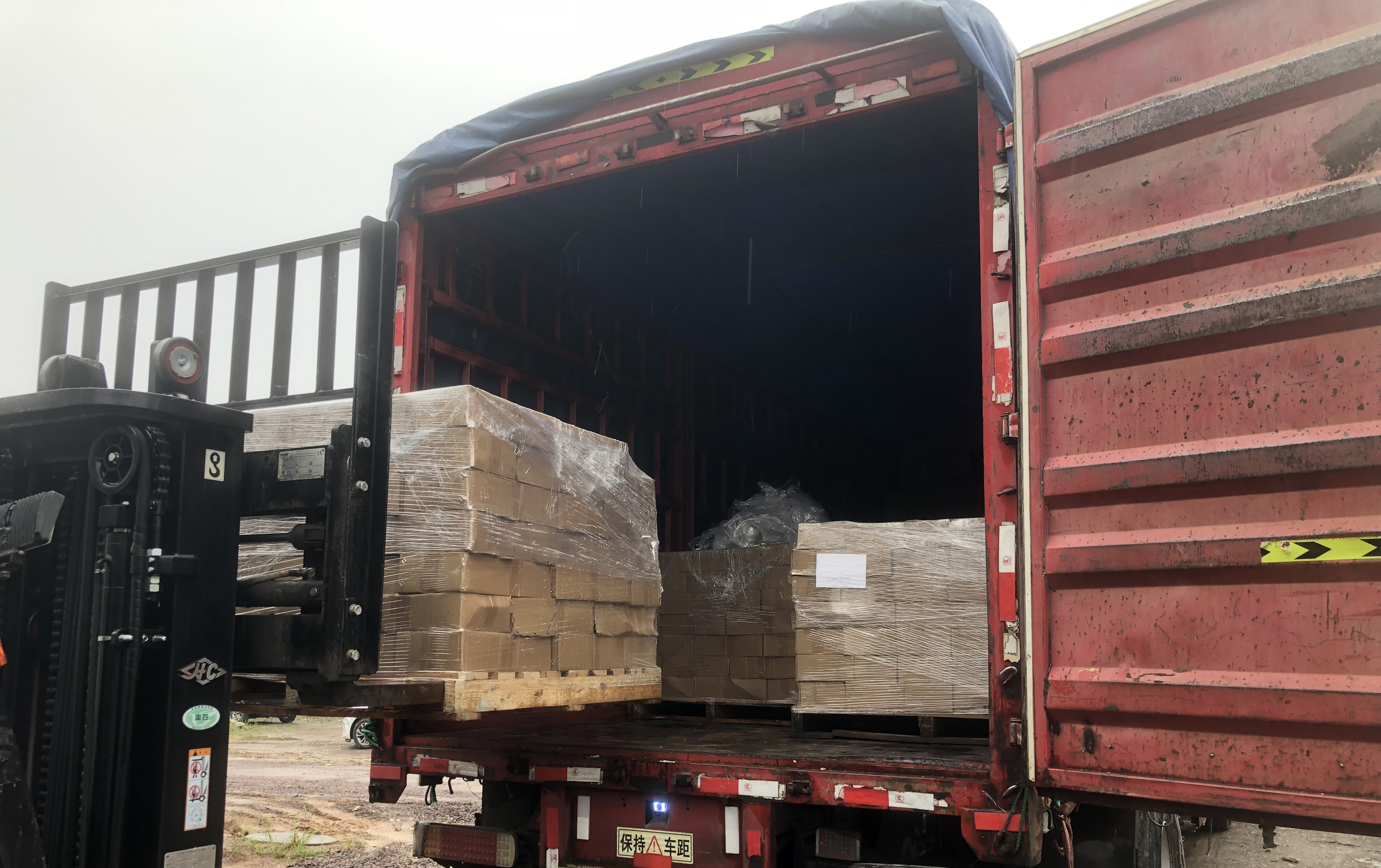

fire rated glass loading
fire rated glass loading
We offer customized services tailored to your specific requirements, ensuring flexibility and satisfaction. Additionally, we assist with obtaining relevant certifications to ensure compliance with market standards. All products are professionally packaged to guarantee safe delivery. We are committed to providing comprehensive services that give you peace of mind every step of the way!

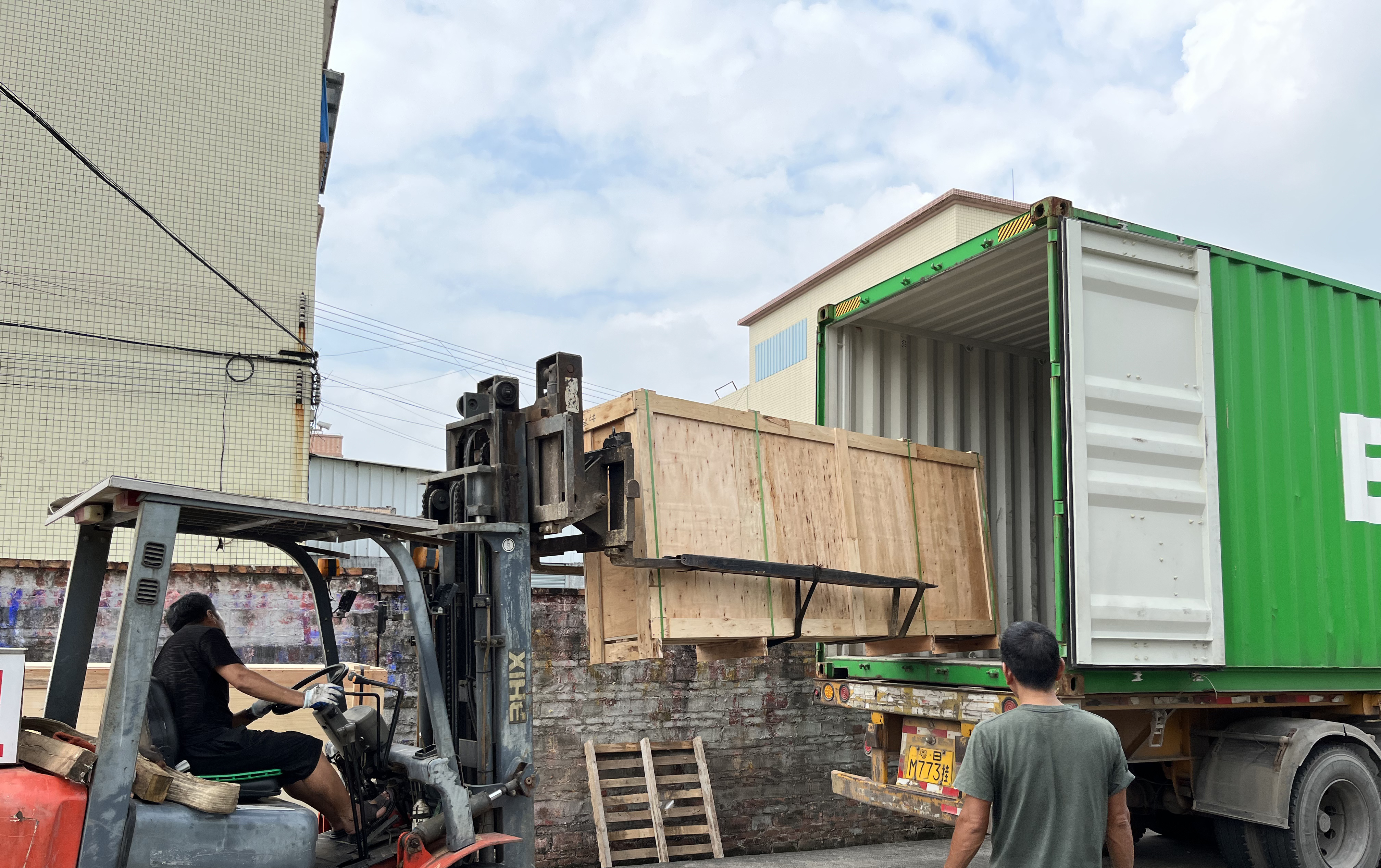

fire rated glass loading
fire rated glass exhibition
fire rated glass exhibition
Heshan Rato Special Glass and Building Materials Co., Ltd. is a company who specialized in various of building glass and special glass, such as Fire Rated Glass, Insulated Glass, Laminated Glass, Fire Rated Glazing Doors and Windows, Smart Glass, Aluminium Non-combustible Panel, etc.
We attend exhibitions every year and look forward to meeting you there.
