Views: 0 Author: Site Editor Publish Time: 2026-05-22 Origin: Site
When it comes to hospital fire safety, selecting the right fire rated glass is not just about meeting building codes—it is about protecting lives. Hospitals are high-occupancy buildings with vulnerable patients, complex layouts, and critical care zones that demand the highest level of fire protection. Fire rated glass for hospital applications provides transparent fire barriers that allow natural light, maintain visibility, and ensure safe evacuation during an emergency. This guide covers everything you need to know about fire resistant glass for healthcare facilities, from fire rating classifications and regulatory standards to product selection and installation best practices.
Hospitals present unique fire safety challenges. With patients who may have limited mobility, medical equipment that must remain operational, and corridors that serve as both circulation paths and evacuation routes, the glazing used in healthcare settings must meet stringent performance criteria.
Fire compartmentation is the practice of dividing a building into fire-resistant zones to contain fire and smoke, preventing them from spreading throughout the facility. In hospitals, fire rated glass plays a vital role in maintaining these compartmentation requirements while preserving an open, welcoming environment. The Life Safety Code (NFPA 101) requires specific fire resistance ratings for corridor walls, smoke barriers, and room enclosures in healthcare occupancies. Fire rated glazing allows architects to create transparent fire-rated assemblies that do not compromise patient visibility or staff supervision.
Unlike office buildings where evacuation can be completed relatively quickly, hospitals must often shelter patients in place during a fire. This makes fire resistant glass in hospitals especially critical—it must not only block flames but also provide thermal insulation to keep non-fire zones safe. Class EI fire rated glass, which provides both integrity (E) and insulation (I), keeps the non-fire side below 140°C even when the fire side exceeds 1000°C, protecting patients in adjacent areas from radiant heat.
Understanding fire rating classifications is essential for specifying the correct product for each hospital application.
E rating (Integrity only): Prevents flame and smoke passage but does not block radiant heat. Suitable for areas where heat transmission is not a primary concern.
EW rating (Integrity + reduced radiation): Limits radiant heat transfer to a specified level.
EI rating (Integrity + Insulation): Provides full thermal insulation, keeping the non-fire side surface temperature below specified limits. EI class fire rated glass is typically required for hospital critical areas including ICUs, operating theatres, patient rooms, and recovery zones where patients cannot be quickly moved.
Fire rated glass is classified by the number of minutes it can withstand fire exposure:
EI30 (30 minutes): Suitable for sub-compartment walls and low-risk corridor applications.
EI60 (60 minutes): Commonly used in smoke compartment boundaries and stairwell enclosures.
EI90 (90 minutes): Required for high-risk areas and fire-rated doors with vision panels.
EI120 (120 minutes): The highest standard for fire-resistive assemblies, often required for critical fire barriers between hospital wings or between healthcare facilities and adjacent structures.
For demanding applications, RATO offers composite fire rated glass with fire ratings up to 1h, 2h, 3h of fire integrity or fire insulation, making it suitable for the most stringent hospital requirements.
Fire resistant glass can be used throughout a hospital in various configurations.

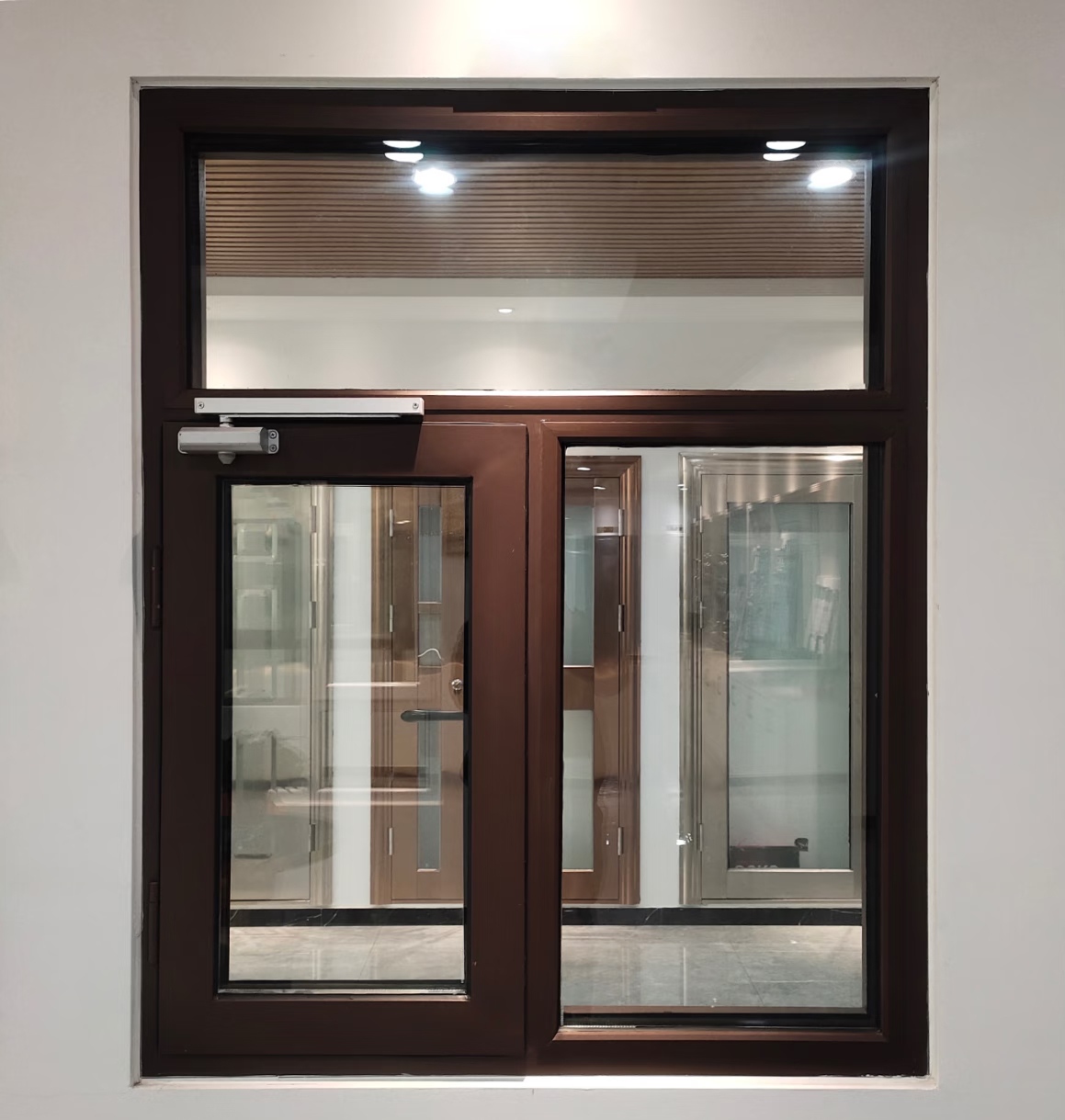

Hospital windows must balance fire safety with natural light and patient comfort. Fire rated glass windows are installed in exterior walls where fire separation between the hospital and adjacent buildings is required, as well as interior walls where fire compartmentation is needed. RATO offers galvanized steel and stainless steel fire rated glass windows with BS certificates and fire ratings of 60, 90, and 120 minutes. For projects requiring higher visual clarity, Pyroguard’s transparent glazing solutions have been used in hospital corridors and internal partitions to replace traditional wired glass.

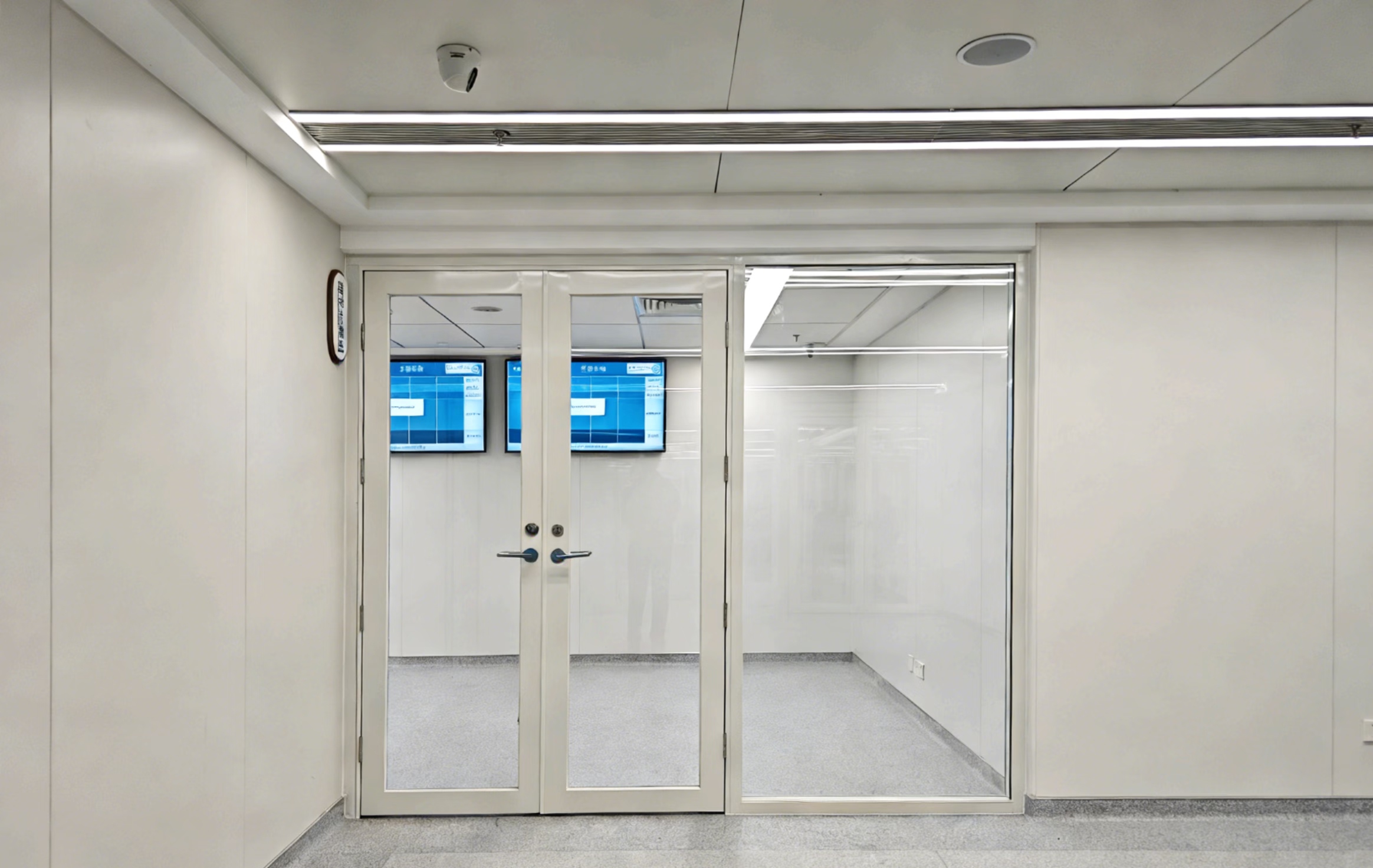

Fire rated glass doors are essential for maintaining fire compartmentation while allowing visual supervision in hospital corridors, patient rooms, and ICUs. Hospitals require fire rated glass doors that also meet impact safety ratings (ANSI Z97.1 and CPSC 16CFR1201) to withstand daily use and accidental impacts. RATO’s stainless steel fire rated access doors and escape doors are specifically designed for healthcare environments, including a specialized “Dubai Hospital Glass Door System” that combines fire resistance with aesthetic appeal.

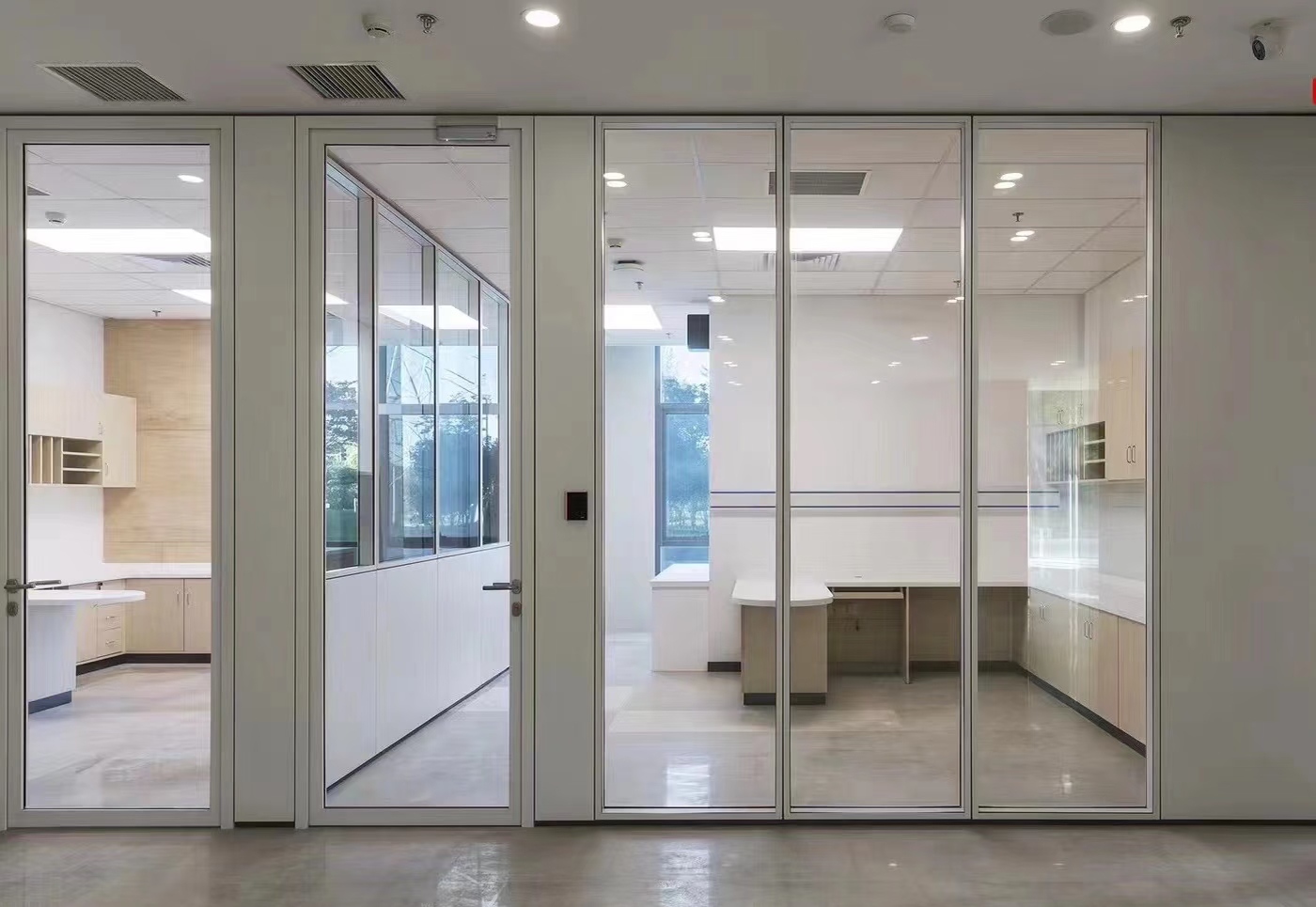

Large hospital atriums and lobby areas often require fire rated curtain walls to maintain open sightlines while providing fire compartmentation between building zones. Fire resistive curtain walls with 60- to 120-minute ratings have been used in hospital projects to meet both fire and seismic requirements. Vision panels in fire rated doors are also required by code for horizontal exits in healthcare occupancies, allowing staff to assess conditions before opening doors into smoke-filled areas.
Open-plan hospital designs often require transparent fire barriers that do not block sightlines. Fire rated glass partitions and fire screens allow natural light to penetrate deep into the facility while providing the necessary fire separation between departments. Common hospital applications include:
ICU and CCU enclosures: EI-rated glass provides thermal insulation to protect critically ill patients
Operating theatre boundaries: Fire rated glazing maintains sterile separation while allowing observation
Recovery rooms: Transparent fire barriers support patient monitoring
Corridor separations: Fire screens maintain evacuation routes
Some healthcare projects have successfully replaced wired safety glass with modern clear fire safety glass for internal partitions throughout the facility, improving both aesthetics and safety compliance.
Different fire rated glass technologies offer varying levels of performance, transparency, and cost. Understanding these options helps hospital specifiers make informed decisions.
Composite fire rated glass consists of multiple glass layers bonded with intumescent interlayers. When exposed to fire, the interlayers expand to form an opaque insulating barrier that blocks both flame and heat. This type achieves full EI ratings (both integrity and insulation) and is the preferred choice for hospital critical areas where patient protection is paramount. RATO specializes in composite fire rated glass using a new type of hard inorganic transparent fire rated material, which provides exceptional performance with bubble-free clarity and no yellowing over time. The fireproof glue used is food-grade, non-toxic, and environmentally safe—an important consideration for healthcare environments.
Tempered fire rated glass is single-layer glass that has been thermally treated for strength. It provides E rating (integrity only) and is suitable for applications where thermal insulation is not required. RATO’s tempered fire glass options include E30 to E60 ratings. In hospitals, tempered fire glass may be used in less critical locations such as interior corridor windows above the 42-inch threshold where impact resistance is the primary concern.
Ceramic glass offers excellent thermal shock resistance and clarity, making it a popular choice for high-visibility applications. Some ceramic fire rated glass products provide fire protection up to 180 minutes with hose stream test approval. However, ceramic glass typically provides E rating only; for EI-rated (insulated) assemblies, it must be combined with additional insulation layers.
Traditional wired glass incorporates wire mesh to hold the glass together under heat. While it provides basic integrity protection, wired glass is increasingly being replaced by modern fire rated glass due to safety concerns (it can shatter under impact, causing injury). Many hospital safety regulations now discourage or prohibit the use of Georgian wired glass in fire doors for areas with increased likelihood of injury.
Hospitals must comply with local and international fire safety codes. Below are the key standards governing fire rated glass for medical facilities.
In European markets, fire rated glazing for hospitals must comply with BS EN 1364-1 (for non-loadbearing elements) and BS EN 1634-1 (for door assemblies). RATO’s fire resistant glass has passed European Standard tests, ensuring compliance for hospital projects across the UK and EU.
For North American hospital projects, fire rated glass must meet ASTM E119 (standard test methods for fire resistance of building materials) and UL 10B/10C (fire tests of door assemblies). Products with UL classification and hose stream test approval are required for fire ratings exceeding 45 minutes in the U.S
Australian healthcare facilities require fire rated glazing to comply with AS 1530.4. RATO has passed Australian Standard tests, making its fire resistant glass suitable for hospital projects across Australia and New Zealand.
NFPA 80 governs the installation and maintenance of fire doors and windows, while NFPA 101 Life Safety Code establishes specific compartmentation requirements for healthcare occupancies. For fire rated door assemblies in new horizontal exits, vision panels are required by NFPA 101-2012 Section 18.2.2.5.6. Modern building codes also require that glazing in hazardous locations meet impact safety standards, as glazing larger than 1296 square inches must survive a 400 foot-pound impact (CPSC Cat. II Standard).
Based on the comprehensive product line available at RATO Glass, the following solutions are ideal for hospital applications.
RATO’s EI class fire rated glass provides both flame containment and thermal insulation, keeping the non-fire side surface temperature below 140°C even when the fire side exceeds 1000°C. Key features include:
Fire ratings: 1h, 2h, 3h, and 4h fire integrity or fire insulation
Ultra-thin design: Just 10mm thick yet achieves 135 minutes of fire and heat radiation protection—making it the world’s thinnest high-performance fire rated glass
Superior durability: 5-year warranty and 10+ years service life with no bubbles, yellowing, discoloration, or degumming
Safety certification: Passed British, European, and Australian Standard tests
For hospital corridors, patient rooms, and ICUs, RATO’s stainless steel fire rated glass door systems offer:
Fire resistance up to 90 minutes (BS EN listed)
304 stainless steel construction for hygiene and durability
Push-pull handle options for accessibility
Specialized designs for Dubai hospital applications
RATO’s galvanized steel fire rated glass windows are ideal for hospital exterior applications where both fire resistance and weather protection are required. Available with BS certificates in 60-, 90-, and 120-minute fire ratings.
RATO’s fire resistant glass line includes EI60, EI90, and EI120 ratings certified to ASTM E119, BS EN 1634-1, and AS 1530.4 standards, making it suitable for commercial buildings and healthcare facilities worldwide.
Fire protective glass (E rated) prevents the passage of flames and smoke but does not block radiant heat transfer. Fire resistive glass (EI rated) provides both flame containment and thermal insulation. Hospitals typically require EI rated glass in patient-occupied areas to protect vulnerable occupants from heat exposure.
Yes. Fire rated glass is commonly specified for ICU and CCU windows. EI class fire rated glass provides thermal insulation that protects critically ill patients from radiant heat during a fire, while maintaining visibility for medical staff to monitor patients.
Look for products certified to applicable local standards:
Europe: BS EN 1364-1, BS EN 1634-1
North America: ASTM E119, UL 10B/10C, NFPA 80
Australia: AS 1530.4
International: Hose stream test approval for ratings over 45 minutes
Yes. All fire rated glass products are tested to contain the passage of smoke as part of their integrity (E) rating. This smoke containment is critical in hospitals to prevent toxic smoke from spreading through corridor and room openings during a fire.
Fire rated glass costs vary based on fire rating duration (EI30 vs EI120), glass type (composite vs ceramic), thickness, frame material (steel or aluminum), and custom requirements. For accurate pricing based on your specific hospital project specifications, contact RATO directly for a quote.
Selecting the right fire rated glass for hospital applications requires careful consideration of fire rating classifications, international standards, impact safety requirements, and product compatibility. By understanding these key factors and working with qualified suppliers such as RATO Glass, healthcare facility designers and owners can create safe, code-compliant environments that protect patients, staff, and visitors.
For more information on RATO’s fire rated glass products for hospitals, including EI class fire resistant glass, stainless steel fire rated doors, and fire rated windows with international certifications, visit their website or contact their sales team directly.
