• Data Sheet
    Test Standard EN 1634-1:2014 (report issued 2020)
    Glass structure 5mm+5G+5mm
    Weight 33kg/㎡
    Light transmittance 84%
    g-value 0.58
    U-value 4.2W/㎡K
    Energy transmission 60%
    EI fire rated glassEI fire rated glass

  • Data Sheet
    Test Standard EN 1634-1:2008 (report issued 2015)
    Glass structure 5mm+5.5G+5mm+5.5G+5mm
    Weight 54kg/㎡
    Light transmittance 79%
    g-value 0.72
    U-value 4.7W/㎡K
    Energy transmission 55%
    EI fire rated glassEI fire rated glass
  • Data Sheet
    Test Standard EN 1634-1:2014+A1:2018 (2022)
    Glass structure 5mm+5G+5mm+5G+5mm
    +5G+5mm
    Weight 72kg/㎡
    Light transmittance 84%
    g-value 0.62
    U-value 3.7W/㎡K
    Energy transmission 52%
    EI fire rated glassEI fire rated glass
  • Data Sheet
    Test Standard ASTM E119-22; BS 476 Part 22
    Glass structure 5mm+5G+5mm+5G+5mm
    +5G+5mm
    Weight 72kg/㎡
    Light transmittance 84%
    g-value 0.62
    U-value 3.7W/㎡K
    Energy transmission 52%
    EI fire rated glassEI fire rated glass
  • Data Sheet
    Test Standard EN 1634-1:2014 (report issued 2023)
    Glass structure 6mm+5G+6mm+5G+6mm+5G
    +6mm+5G+6mm
    Weight 82kg/㎡
    Light transmittance 72%
    g-value 0.51
    U-value 2.2
    Energy transmission 37%
    EI fire rated glassEI fire rated glass
  • Data Sheet
    Test Standard EN 1364-1:2015 (report issued 2023)
    Glass structure 8mm+5G+6mm+5G+6mm+5G
    +6mm+5G+8mm
    Weight 93kg/㎡
    Light transmittance 72%
    g-value 0.49
    U-value 2.1
    Energy transmission 36%
    EI fire rated glassEI fire rated glass

What is the difference between E and EI?



E means integrity: the glass stops flames and hot gases passing through. EI adds insulation: the glass also limits the temperature rise on the side away from the fire. EW is a separate class that limits radiated heat only.

The number is the duration in minutes. A class is only valid for the tested assembly, size and configuration.

Class Integrity (E) Insulation (I) What to expect on the unexposed side
E30, E60, E90 Yes, for the stated minutes No Can become very hot
EW Yes Radiation only Limits radiated heat, not surface temperature
EI30, EI60, EI90, EI120 Yes, for the stated minutes Yes, for the stated minutes Surface temperature rise is limited

Which EI ratings do we supply, and what do the tests report?



The designation is the product name we use. The reported result is taken from the test report for the tested assembly.

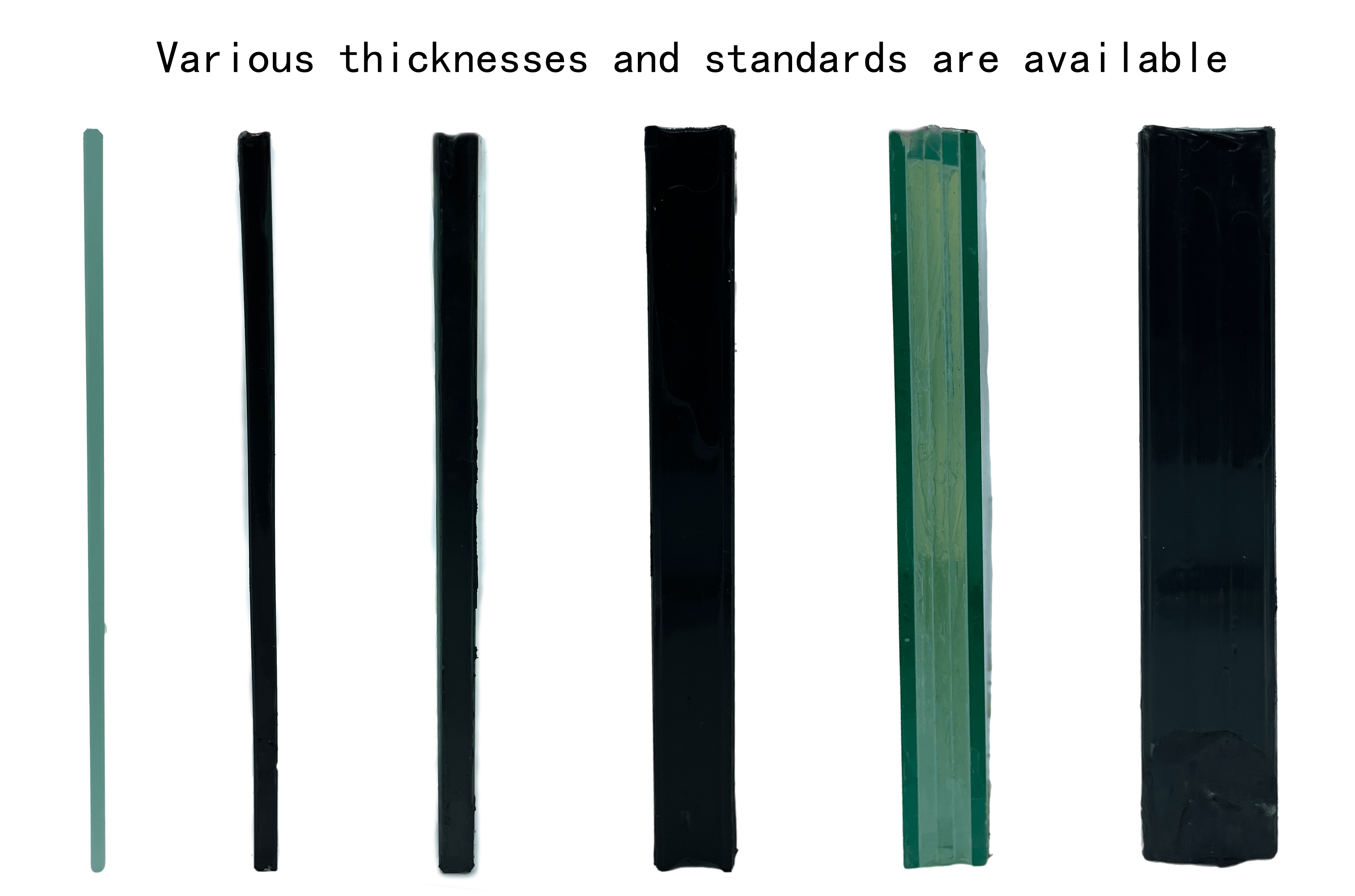

Thickness Supplier designation Reported test result Standard
15 mm EI30 A tested double-leaf doorset with 15 mm glazing recorded 59 minutes of integrity (cotton pad), 86 minutes of sustained flaming and 33 minutes of insulation. EN 1634-1:2014 (report issued 2020)
26 mm EI60 A tested double-leaf doorset with 26 mm glazing recorded 68 minutes for integrity and insulation. AS 1530.4:2005 (report issued 2015)
26 mm EI60 A tested double-leaf doorset with transom and side panels and 26 mm glazing recorded 89 minutes (cotton pad), 90 minutes (gap gauge, no failure) and 68 minutes (sustained flaming) for integrity, and 68 minutes for insulation. The report states: “Insulation performance is deemed not to be satisfied as a consequential effect of failing integrity performance as mentioned in clause 11.4.2 of BS EN 1363-1: 2012.” EN 1634-1:2008 (report issued 2015)
35 mm EI90 A tested fireproof glass door system with 35 mm glazing recorded 92 minutes for integrity and insulation. EN 1634-1:2014+A1:2018 (2022)
35 mm EI120 A tested double-leaf all-glass door system with 35 mm insulated panels satisfied a 2-hour fire-resistance rating, including the hose stream test (ASTM E119-22, 2023). In a separate test it recorded 131 minutes of integrity and 67 minutes of insulation (BS 476 Part 22, 2023). ASTM E119-22; BS 476 Part 22
50 mm EI120 A tested doorset with 50 mm insulated glazing recorded 132 minutes for integrity and insulation. EN 1634-1:2014 (report issued 2023)
54 mm EI120 A tested 54 mm fixed glazed partition (3,000 × 3,500 mm) recorded 125 minutes for integrity and insulation. EN 1364-1:2015 (report issued 2023)
69 mm EI120 A tested 69 mm fixed glazing assembly recorded 178 minutes of integrity (cotton pad), 215 minutes (gap gauge and sustained flaming) and 151 minutes of insulation. EN 1364-1:1999 (report issued 2015)

Full test reports are available on request. Results relate to the tested specimen or assembly only.

What does EI30 guarantee, and what does it not?



EI30 means the tested assembly kept integrity and insulation for at least 30 minutes. It does not mean the glass alone is rated, the frame is rated, or the wall is rated for 30 minutes. It does not cover sizes, frames or fixings that were not part of the test. If your wall or door must reach 60 minutes or more, choose a higher class, and confirm the full assembly.

What do I send with an inquiry?



Send the required rating and duration, project specification or code reference, glass sizes, application and destination, and any frame or fixing requirements. Return to single-layer fire-rated glass if integrity only is required. We confirm the specification of every order in writing. Typical lead time is 20–30 days after deposit.

Results relate to the tested specimen/assembly only; the specification of each order is confirmed in writing.
